Control Valves

Knowledge Base

Control valves are designed to control the flow of pressurized or compressed air or other gases by regulating the media and delivering it to tubing or other pneumatic components. Clippard’s offering includes flow controls, needle, check, shuttle and exhaust valves, and extremely precise pressure regulators as well as numerous supporting accessories many offered in brass and ENP brass.

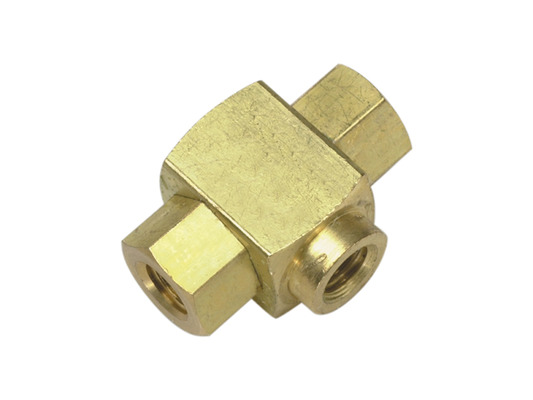

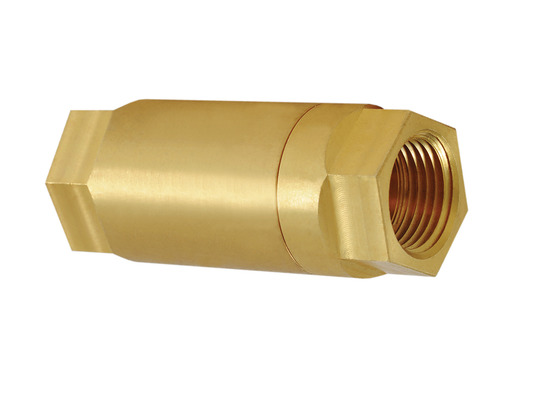

Check Valves

Check Valves permit flow in one direction only. 2-Way, 3-Way and 4-Way configurations with port sizes of #10-32, 1/8", 1/4" and 3/8" NPT. Each has durable brass bodies that provide direct or in-line mounting.

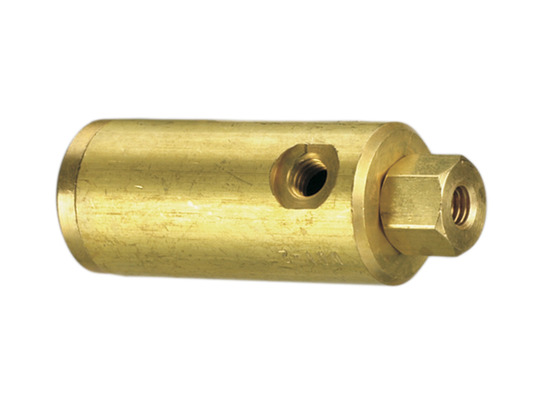

Drawback Valves

Pilot actuated water drawback valves are ideal for use in quenching or water spray applications. When this Normally-Closed valve closes, a spring biased internal piston draws back a small volume on the outlet side (approximately 6" to 7" in 1/8" I.D. tube) thus preventing overflow or dribbles.

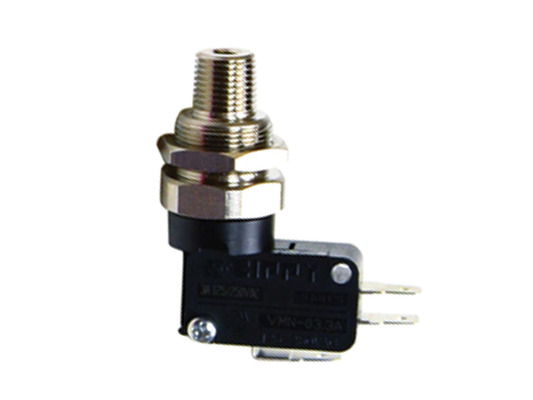

Pressure Actuated Switches

These miniature air switches utilize a single pole, double throw (SPDT) electrical switch. Manual models may be used with Clippard air pilot or push-button actuators.

Exhaust Valves

Exhaust Valves offer a variety of design features and provide fast response times and high flow with 1/8”, 1/4” NPT or #10-32 ports. These compact poppet type valves are constructed of brass and is 100% tested to assure the highest quality.

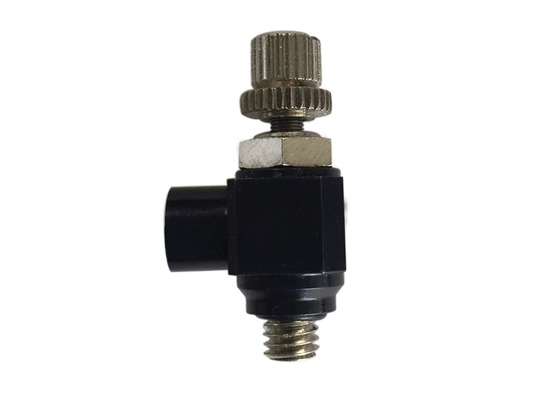

Flow Controls

Various models of adjustable flow controls with #10-32, 1/8", 1/4" or 3/8" NPT ports with many connection, pressure and adjustment options. They feature a combination needle and check valve that controls flow in one direction and allows free flow in the opposite direction.

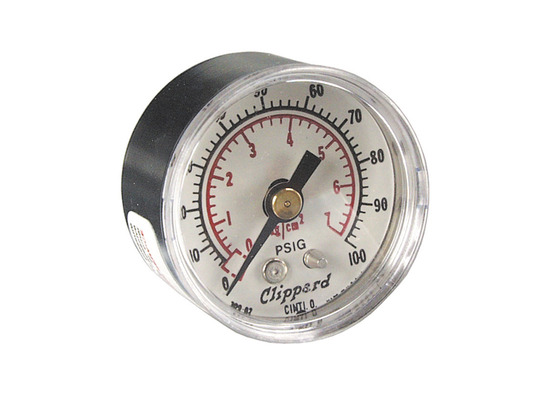

Gauges

Gauges measure pneumatic system or pneumatic vacuum pressures. Constructed with a steel case and plastic face, these gauge dials show two pressure ranges and feature a built-in pressure snubber.

Needle Valves

Adjustable control needle valves restrict flow in both directions. There are eight models offered by Clippard with various ports and needle configurations to provide coarse or fine flow adjustment.

Pressure Regulators

Precisions pressure regulators are specifically designed for applications that require high levels of precision. The simple, robust design provides exceptional durability and long life. Choose from a variety of mounting configurations and adjustment options.

Pulse Valves

Pulse Valves are Normally-Open, 3-Way valves that close shortly after being pressurized and remain closed until supply pressure is exhausted and re-pressurized. Widely used in control circuits.

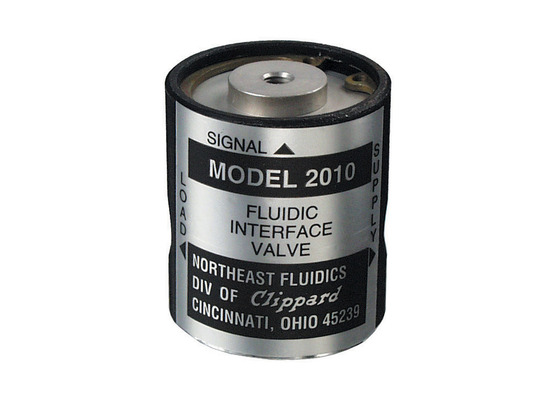

Low Pressure Piloted Valves

The term low pressure is a relative term. These series of valves can sense pressure down to 1.5" H20 and actuate amplifier valves that will give out put pressure of 150 psi and over 25 scfm to cover most high flow miniature pneumatic applications.

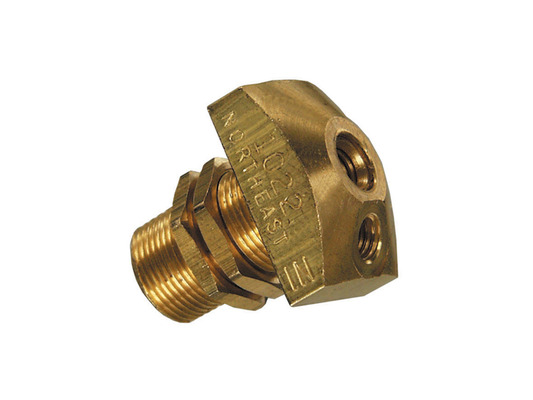

Pneumatic Sensors

Electronics are often the choice for non-contact sensing, but for some applications the all pneumatic solution for a non electrical sensing system is often a lower cost than the electrical components. Our gap sensor and proximity sensor works on low pressure and has no moving parts.

Shuttle Valves

Shuttle valves feature a "shuttle" that allows flow from one inlet to the outlet while blocking the other inlet. They may be mounted directly to valves and cylinders or in-line using the hose barbs on the MSV models.

Pressure Indicators

Plunger style single- and multi-pin air indicators. Panel or direct mount, #10-32 or 1/8" NPT porting.

To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.

Need help? Contact Us >

Part No.	Product Description 1-100 of 591 Page: 1 2 3 ... 6
1022	Proximity Sensor, Non-Contact, #10-32
1030	Gap Sensor, Non-Contact, #10-32
MAR-1MK-3	Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Plastic Knob, 10-70 psig
DR-2-1	DR-2 Precision Regulator, #10-32 Ports, Relieving, 0.5-10 psig
DR-2-5	DR-2 Precision Regulator, #10-32 Ports, Relieving, 1-50 psig
DR-2BP	DR-2 Precision Regulator, 1/8" NPT Ports, Relieving, 2-100 psig
DR-2BP-1	DR-2 Precision Regulator, 1/8" NPT Ports, Relieving, 0.5-10 psig
DR-2BP-5	DR-2 Precision Regulator, 1/8" NPT Ports, Relieving, 1-50 psig
DR-2BPK	DR-2 Precision Regulator, 1/8" NPT, Relieving, Knurled Knob, 2-100 psig
DR-2BPK-1	DR-2 Precision Regulator, 1/8" NPT, Relieving, Knurled Knob, 0.5-10 psig
DR-2BPK-5	DR-2 Precision Regulator, 1/8" NPT, Relieving, Knurled Knob, 1-50 psig
DR-2BPKNR	DR-2 Precision Regulator, 1/8" NPT, Non-Relieving, Knurled Knob, 2-100 psig
DR-2BPKNR-1	DR-2 Precision Regulator, 1/8" NPT, Non-Relieving, Knurled Knob, 0.5-10 psig
DR-2BPKNR-5	DR-2 Precision Regulator, 1/8" NPT, Non-Relieving, Knurled Knob, 1-50 psig
DR-2BPNR	DR-2 Precision Regulator, 1/8" NPT Ports, Non-Relieving, 2-100 psig
DR-2BPNR-1	DR-2 Precision Regulator, 1/8" NPT Ports, Non-Relieving, 0.5-10 psig
DR-2C	DR-2 Precision Regulator, Cartridge, Relieving, 2-100 psig
DR-2C-1	DR-2 Precision Regulator, Cartridge, Relieving, 0.5-10 psig
DR-2C-5	DR-2 Precision Regulator, Cartridge, Relieving, 1-50 psig
DR-2CK	DR-2 Precision Regulator, Cartridge, Relieving, Knurled Knob, 2-100 psig
DR-2CK-1	DR-2 Precision Regulator, Cartridge, Relieving, Knurled Knob, 0.5-10 psig
DR-2CK-5	DR-2 Precision Regulator, Cartridge, Relieving, Knurled Knob, 1-50 psig
DR-2CKNR	DR-2 Precision Regulator, Cartridge, Non-Relieving, Knurled Knob, 2-100 psig
DR-2CKNR-1	DR-2 Precision Regulator, Cartridge, Non-Relieving, Knurled Knob, 0.5-10 psig
DR-2CKNR-5	DR-2 Precision Regulator, Cartridge, Non-Relieving, Knurled Knob, 1-50 psig
DR-2CNR	DR-2 Precision Regulator, Cartridge, Non-Relieving, 2-100 psig
DR-2CNR-1	DR-2 Precision Regulator, Cartridge, Non-Relieving, 0.5-10 psig
DR-2CNR-5	DR-2 Precision Regulator, Cartridge, Non-Relieving, 1-50 psig
DR-2K	DR-2 Precision Regulator, #10-32, Relieving, Knurled Knob, 2-100 psig
DR-2K-1	DR-2 Precision Regulator, #10-32, Relieving, Knurled Knob, 0.5-10 psig
DR-2K-5	DR-2 Precision Regulator, #10-32, Relieving, Knurled Knob, 1-50 psig
DR-2KNR	DR-2 Precision Regulator, #10-32, Non-Relieving, Knurled Knob, 2-100 psig
DR-2KNR-5	DR-2 Precision Regulator, #10-32, Non-Relieving, Knurled Knob, 1-50 psig
DR-2M	DR-2 Precision Regulator, #10-32, Manifold Mount, Relieving, 2-100 psig
DR-2M-1	DR-2 Precision Regulator, #10-32, Manifold Mount, Relieving, 0.5-10 psig
DR-2M-5	DR-2 Precision Regulator, #10-32, Manifold Mount, Relieving, 1-50 psig
DR-2MK	DR-2 Precision Regulator, #10-32, Manifold Mount, Relieving, Knurled Knob, 2-100 psig
DR-2MK-1	DR-2 Precision Regulator, #10-32, Manifold Mount, Relieving, Knurled Knob, 0.5-10 psig
DR-2MK-5	DR-2 Precision Regulator, #10-32, Manifold Mount, Relieving, Knurled Knob, 1-50 psig
DR-2MKNR-1	DR-2 Precision Regulator, #10-32, Manifold Mount, Non-Relieving, 0.5-10 psig
DR-2MKNR-5	DR-2 Precision Regulator, #10-32, Manifold Mount, Non-Relieving, 1-50 psig
DR-2MNR	DR-2 Precision Regulator, #10-32, Manifold Mount, Non-Relieving, 2-100 psig
DR-2MNR-1	DR-2 Precision Regulator, #10-32, Manifold Mount, Non-Relieving, 0.5-10 psig
DR-2MNR-5	DR-2 Precision Regulator, #10-32, Manifold Mount, Non-Relieving, 1-50 psig
DR-2NR	DR-2 Precision Regulator, #10-32, Non-Relieving, 2-100 psig
DR-2NR-1	DR-2 Precision Regulator, #10-32, Non-Relieving, 0.5-10 psig
DR-2NR-5	DR-2 Precision Regulator, #10-32, Non-Relieving, 1-50 psig
DR-2P	DR-2 Precision Regulator, 1/8" NPT-#10-32, Relieving, 2-100 psig
DR-2P-1	DR-2 Precision Regulator, 1/8" NPT-#10-32, Relieving, 0.5-10 psig
DR-2P-5	DR-2 Precision Regulator, 1/8" NPT-#10-32, Relieving, 1-50 psig
DR-2PK	DR-2 Precision Regulator, #10-32, Relieving, Knurled Knob, 2-100 psig
DR-2PK-1	DR-2 Precision Regulator, #10-32, Relieving, Knurled Knob, 0.5-10 psig
DR-2PKNR	DR-2 Precision Regulator, #10-32, Non-Relieving, Knurled Knob, 2-100 psig
DR-2PKNR-1	DR-2 Precision Regulator, #10-32, Non-Relieving, Knurled Knob, 0.5-10 psig
DR-2PKNR-5	DR-2 Precision Regulator, #10-32, Non-Relieving, Knurled Knob, 1-50 psig
DR-2PNR	DR-2 Precision Regulator, 1/8" NPT-#10-32, Non-Relieving, 2-100 psig
DR-2PNR-1	DR-2 Precision Regulator, 1/8" NPT-#10-32, Non-Relieving, 0.5-10 psig
DR-2PNR-5	DR-2 Precision Regulator, 1/8" NPT-#10-32, Non-Relieving, 1-50 psig
JFC-4K	Meter Out Adjustable Control Valve, 1/4” NPT
GNV-3KI	GNV Needle Valve, In-Line Mount, 1/8" NPT, Knob Adjustment
GCV-4	Check Valve, 1/4” Ports
GCV-5	Check Valve, 3/8” Ports
GNV-3K	GNV Needle Valve, Direct Mount, 1/8" NPT, Knob Adjustment
GNV-3KC	GNV Needle Valve, Cartridge Mount, Knob Adjustment
GNV-3R	GNV Needle Valve, Direct Mount, 1/8" NPT, Slot Adjustment
GNV-3RC	GNV Needle Valve, Cartridge Mount, Slot Adjustment
GNV-3RI	GNV Needle Valve, In-Line Mount, 1/8" NPT, Slot Adjustment
GNV-4KC	GNV Needle Valve, Cartridge Mount, Knob Adjustment
GNV-4KI	GNV Needle Valve, In-Line Mount, 1/4" NPT, Knob Adjustment
GNV-4R	GNV Needle Valve, Direct Mount, 1/4" NPT, Slot Adjustment
GNV-4RC	GNV Needle Valve, Cartridge Mount, Slot Adjustment
GNV-4RI	GNV Needle Valve, In-Line Mount, 1/4" NPT, Slot Adjustment
GNV-5K	GNV Needle Valve, Direct Mount, 3/8" NPT, Knob Adjustment
GNV-5KC	GNV Needle Valve, Cartridge Mount, Knob Adjustment
GNV-5KI	GNV Needle Valve, In-Line Mount, 3/8" NPT, Knob Adjustment
GNV-5R	GNV Needle Valve, Direct Mount, 3/8" NPT, Slot Adjustment
GNV-5RC	GNV Needle Valve, Cartridge Mount, Slot Adjustment
GNV-5RI	GNV Needle Valve, In-Line Mount, 3/8" NPT, Slot Adjustment
JFC-3B	Meter In Adjustable Flow Control Valve
JEV-F2M4	Quick Exhaust Valve,1/8" NPTF Inlet, 1/4" NPTM Outlet, 1/8" NPTF Exhaust
JEV-F4M4	Quick Exhaust Valve,1/4" NPTF Inlet, 1/4" NPTM Outlet, 1/8" NPTF Exhaust
JEV-F2M2	Quick Exhaust Valve,1/8" NPTF Inlet, 1/8" NPTM Outlet, 1/8" NPTF Exhaust
IND-3-GN	Pressure Indicator, Green, #10-32
IND-3-RD	Pressure Indicator, Red, #10-32
IND-3-WH	Pressure Indicator, White, #10-32
IND-3-YL	Pressure Indicator, Yellow, #10-32
IND-3P-RD	Air Indicator, Red 1/8” Male NPT
IND-3P-WH	Pressure Indicator, White 1/8” Male NPT
IND-3P-YL	Pressure Indicator, Yellow 1/8” Male NPT
JFC-3BR	Meter In Adjustable Flow Control Valve
JEV-F4F4	Quick Exhaust Valve,1/4" NPTF Inlet, 1/4" NPTF Outlet, 1/8" NPTF Exhaust
JFC-4R	Meter Out Control Valve, Recessed Needle, 1/4” NPT
JFC-5K	Meter Out Adjustable Control Valve, 3/8” NPT
JLEV-F2M2-N	Quick Exhaust In-Line Valve, Thru Hole Exhaust
JLEV-F4M4-N	Quick Exhaust In-Line Valve, Thru Hole Exhaust
JPC-2NLN	Pilot-Operated Check Valve, #10-32
JPC-2NPN	Pilot-Operated Check Valve, #10-32-#10-32-#10-32-1/8" NPT
JPC-3FPF	Pilot-Operated Check Valve, 1/8"-1/8"-1/8"-#10-32
JPC-3FPN	Pilot-Operated Check Valve, 1/8"-1/8"-#10-32-#10-32
JSV-2FPF	J-Series Shuttle Valve, 1/4” Female Out, (2) 1/8” Female Ins
