Shuttle Valves

Knowledge Base

Learn More >

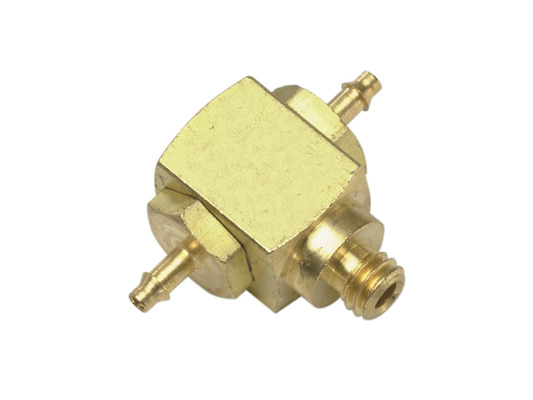

Clippard offers three models of shuttle valves. These valves feature a shuttle that allows flow from one inlet to the outlet while blocking the other inlet. They may be mounted directly to valves and cylinders or in-line using the hose barbs on the MSV models.
  Shuttle Valves 1/8" & 1/4"
Shuttle valves feature a shuttle that allows flow from one inlet to the outlet while blocking the other inlet. They may be mounted directly to valves or in-line using the hose barbs.
  Shuttle Valves
Shuttle valves feature a shuttle that allows flow from one inlet to the outlet while blocking the other inlet. They may be mounted directly to valves or in-line using the hose barbs.



To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.

Need help? Contact Us >

Part No.
Product Description 1-11 of 11
JSV-2FPF J-Series Shuttle Valve, 1/4” Female Out, (2) 1/8” Female Ins
JSV-2PFF J-Series Shuttle Valve, 1/8” Male Out, (2) 1/8” Female In
JSV-2WFF J-Series Shuttle Valve, 1/4” Male Out, (2) 1/8” Female Ins
JSV-2WYY J-Series Shuttle Valve, 1/4” Male Out, 1/4” Male In, 1/4” Female In
JSV-2YFF J-Series Shuttle Valve, 1/4” Female Out, (2) 1/8” Female Ins
JSV-2YWY J-Series Shuttle Valve, 1/4” Female Out, 1/4” Male In, 1/4” Female In
JSV-2YYY J-Series Shuttle Valve, 1/4” Female Out, (2) 1/4” Female Ins
MJSV-1 Poppet Type Shuttle Valve, 1/8” NPT
M-MJSV-1 Poppet Type Shuttle Valve, G1/8
MSV-1 Shuttle Valve, #10-32 Male Outlet, #10-32 Female Inlets
MSV-1FFF Shuttle Valve, All Ports #10-32 Female
