JEV-F2M2

More Views

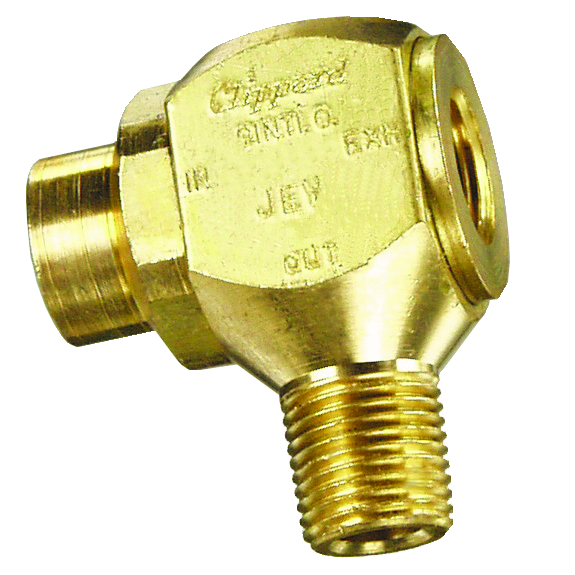

JEV-F2M2

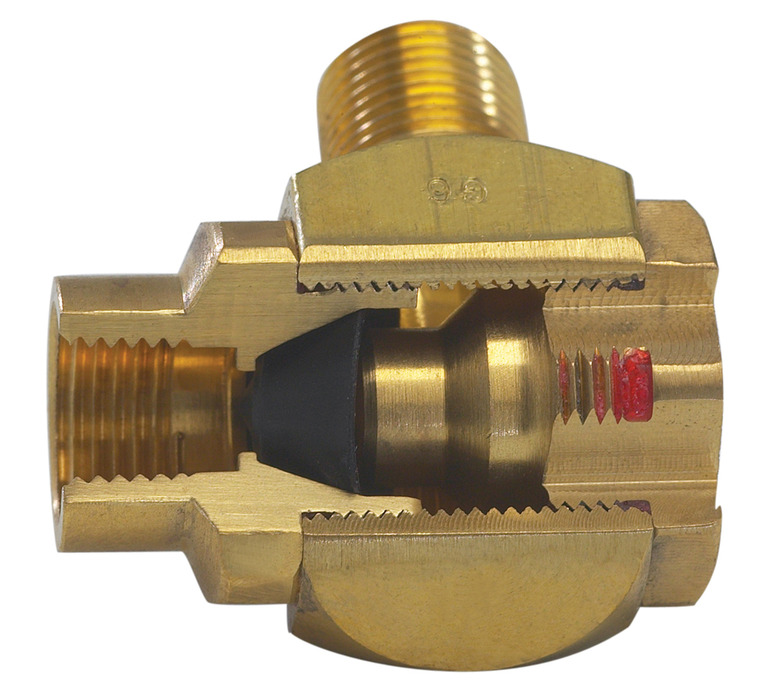

J-Series Exhaust Valves offer a variety of design features and provide fast response times and high flow with 1/8” and 1/4” NPT ports. This compact poppet type valve is constructed of brass and is 100% tested to assure the highest quality.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Enables use of smaller control valves
  • 15 to 150 psig maximum

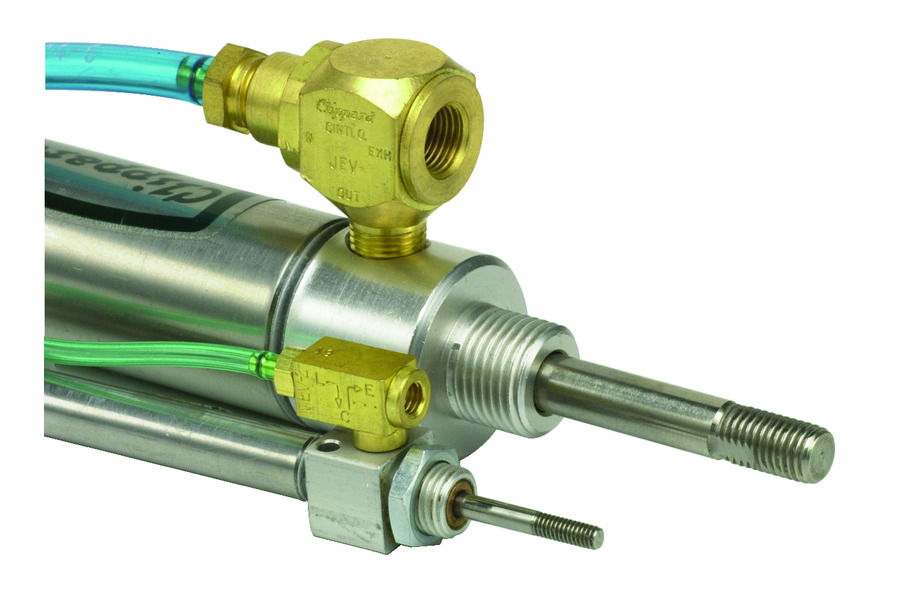

  • Male outlet offers direct connection to cylinder
  • Up to 1,600 l/min @ 100 psig
  • Low shift ratio
  • Over 32 standard configurations
  • Custom configurations also available
  • Brass construction with molded Nitrile seal

    • Input PSI15 to 150 psig max.
    Material, BodyBrass Body, Nitrile Poppet
    Material, SealsNitrile
    Max. Flow140 l/min @ 50 psig (3.5 bar); 1,00 l/min @ 100 psig (7 bar)
    MediumAir
    Operating Pressure15 to 150 psig (1 to 10 bar) max.
    Orientation90°
    Port, Exhaust1/8" NPT Female/Holes
    Port, Inlet1/8" NPT Female
    Port, Outlet1/8" NPT Male
    Product Line BrochureMechanical Valves
    SealsNitrile
    UnitImperial
    Weight (lbs.)0.2500
