GNV-5KI

More Views

GNV-5KI

Needle Valves are used to control the rate of flow in a pneumatic system by controlling flow in both directions. Material enters the input port, travels through an adjustable orifice and out the output port.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Provides bidirectional flow control
  • Rugged & compact design
  • Multiple mounting options
  • 360˚ rotating ports
  • Ideal for use with push-quick fittings

    • AdjustmentKnurled Knob
    Air Flow1700 l/min @ 100 psig
    Input PSI300 psig (21 bar) max.
    MaterialElectroless Nickel Plated Brass Needle & Body, Anodized Aluminum Housing
    Material, SealsNitrile
    MediumAir, Water or Oil

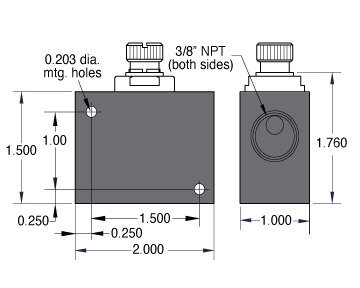

    Mount (Inlet / Outlet )In-Line (3/8" NPT Both Sides)
    NoteRotating input allows 360° positioning. Ideal for use with Clippard Push-Quick Fittings.
    Product Line BrochureMechanical Valves
    Technical Data SheetData Sheet
    Weight (lbs.)0.2500
    Get CAD files:

    Notes

    Rotating input allows 360° positioning. Ideal for use with Clippard Push-Quick Fittings.
