Exhaust Valves

Knowledge Base

Learn More >
Exhaust Valves offer a variety of design features and provide fast response times and high flow with 1/8”, 1/4” NPT or #10-32 ports. These compact poppet type valves are constructed of brass and is 100% tested to assure the highest quality. The primary function is to increase cylinder speed, however, it also enables the use of smaller directional valves, longer control lines and can be used as a shuttle valve.
  #10-32 Threaded Valves
The MEV exhaust valve offers a variety of design features and provides fast response times and high flow with #10-32 ports.
  Quick Exhaust Valves
J-Series exhaust valves offer a variety of design features and provide fast response times and high flow with 1/8” and 1/4” NPT ports. The JEV’s primary function is to increase cylinder speed. However, it also enables the use of smaller directional valves, longer control lines and can be used as a shuttle valve.



To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.

Need help? Contact Us >

Part No.
Product Description 1-8 of 8

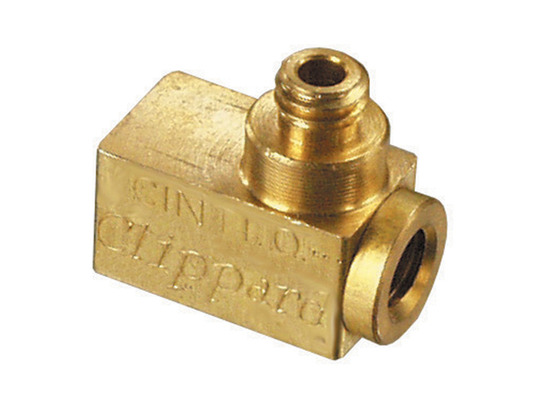

JEV-F2M2 Quick Exhaust Valve,1/8" NPTF Inlet, 1/8" NPTM Outlet, 1/8" NPTF Exhaust
MEV-2 Miniature Exhaust Valve, #10-32
JEV-F4F4 Quick Exhaust Valve,1/4" NPTF Inlet, 1/4" NPTF Outlet, 1/8" NPTF Exhaust
JEV-F2M4 Quick Exhaust Valve,1/8" NPTF Inlet, 1/4" NPTM Outlet, 1/8" NPTF Exhaust
JLEV-F2M2-N Quick Exhaust In-Line Valve, Thru Hole Exhaust
JEV-F4M4 Quick Exhaust Valve,1/4" NPTF Inlet, 1/4" NPTM Outlet, 1/8" NPTF Exhaust
JLEV-F4M4-N Quick Exhaust In-Line Valve, Thru Hole Exhaust
JEV-F2F2 Quick Exhaust Valve,1/8" NPTF Inlet, 1/8" NPTF Outlet, 1/8" NPTF Exhaust
