Pressure Regulators

Knowledge Base

Learn More >
Precisions pressure regulators are specifically designed for applications that require high levels of precision. The simple, robust design provides exceptional durability and long life. Choose from a variety of mounting configurations and adjustment options, or contact Clippard to discuss how these regulators can be customized.
  DR-2 Adjustable Diaphragm Pressure Regulators
  • FKM seals standard
  • Multiple configurations
  • Relieving and non-relieving
  • High accuracy
  • High repeatability
  • Capable of working with air, water, or oil
  • High supply capability of 300 psig
  • Ideal for value-added assemblies
  • Highly customizable
  Miniature Pressure Regulators
  • Simple, robust design
  • Known for reliability, durability and long life
  • Various adjustment options and mounting styles



To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.

Need help? Contact Us >

Part No.
Product Description 1-100 of 327 Page: 1 ->2 3 4
MAR-1MK-3 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Plastic Knob, 10-70 psig
DR-2-1 DR-2 Precision Regulator, #10-32 Ports, Relieving, 0.5-10 psig
DR-2-5 DR-2 Precision Regulator, #10-32 Ports, Relieving, 1-50 psig
DR-2BP DR-2 Precision Regulator, 1/8" NPT Ports, Relieving, 2-100 psig
DR-2BP-1 DR-2 Precision Regulator, 1/8" NPT Ports, Relieving, 0.5-10 psig
DR-2BP-5 DR-2 Precision Regulator, 1/8" NPT Ports, Relieving, 1-50 psig
DR-2BPK DR-2 Precision Regulator, 1/8" NPT, Relieving, Knurled Knob, 2-100 psig
DR-2BPK-1 DR-2 Precision Regulator, 1/8" NPT, Relieving, Knurled Knob, 0.5-10 psig
DR-2BPK-5 DR-2 Precision Regulator, 1/8" NPT, Relieving, Knurled Knob, 1-50 psig
DR-2BPKNR DR-2 Precision Regulator, 1/8" NPT, Non-Relieving, Knurled Knob, 2-100 psig
DR-2BPKNR-1 DR-2 Precision Regulator, 1/8" NPT, Non-Relieving, Knurled Knob, 0.5-10 psig
DR-2BPKNR-5 DR-2 Precision Regulator, 1/8" NPT, Non-Relieving, Knurled Knob, 1-50 psig
DR-2BPNR DR-2 Precision Regulator, 1/8" NPT Ports, Non-Relieving, 2-100 psig
DR-2BPNR-1 DR-2 Precision Regulator, 1/8" NPT Ports, Non-Relieving, 0.5-10 psig
DR-2C DR-2 Precision Regulator, Cartridge, Relieving, 2-100 psig
DR-2C-1 DR-2 Precision Regulator, Cartridge, Relieving, 0.5-10 psig
DR-2C-5 DR-2 Precision Regulator, Cartridge, Relieving, 1-50 psig
DR-2CK DR-2 Precision Regulator, Cartridge, Relieving, Knurled Knob, 2-100 psig
DR-2CK-1 DR-2 Precision Regulator, Cartridge, Relieving, Knurled Knob, 0.5-10 psig
DR-2CK-5 DR-2 Precision Regulator, Cartridge, Relieving, Knurled Knob, 1-50 psig
DR-2CKNR DR-2 Precision Regulator, Cartridge, Non-Relieving, Knurled Knob, 2-100 psig
DR-2CKNR-1 DR-2 Precision Regulator, Cartridge, Non-Relieving, Knurled Knob, 0.5-10 psig
DR-2CKNR-5 DR-2 Precision Regulator, Cartridge, Non-Relieving, Knurled Knob, 1-50 psig
DR-2CNR DR-2 Precision Regulator, Cartridge, Non-Relieving, 2-100 psig
DR-2CNR-1 DR-2 Precision Regulator, Cartridge, Non-Relieving, 0.5-10 psig
DR-2CNR-5 DR-2 Precision Regulator, Cartridge, Non-Relieving, 1-50 psig
DR-2K DR-2 Precision Regulator, #10-32, Relieving, Knurled Knob, 2-100 psig
DR-2K-1 DR-2 Precision Regulator, #10-32, Relieving, Knurled Knob, 0.5-10 psig
DR-2K-5 DR-2 Precision Regulator, #10-32, Relieving, Knurled Knob, 1-50 psig
DR-2KNR DR-2 Precision Regulator, #10-32, Non-Relieving, Knurled Knob, 2-100 psig
DR-2KNR-5 DR-2 Precision Regulator, #10-32, Non-Relieving, Knurled Knob, 1-50 psig
DR-2M DR-2 Precision Regulator, #10-32, Manifold Mount, Relieving, 2-100 psig
DR-2M-1 DR-2 Precision Regulator, #10-32, Manifold Mount, Relieving, 0.5-10 psig
DR-2M-5 DR-2 Precision Regulator, #10-32, Manifold Mount, Relieving, 1-50 psig
DR-2MK DR-2 Precision Regulator, #10-32, Manifold Mount, Relieving, Knurled Knob, 2-100 psig
DR-2MK-1 DR-2 Precision Regulator, #10-32, Manifold Mount, Relieving, Knurled Knob, 0.5-10 psig
DR-2MK-5 DR-2 Precision Regulator, #10-32, Manifold Mount, Relieving, Knurled Knob, 1-50 psig
DR-2MKNR-1 DR-2 Precision Regulator, #10-32, Manifold Mount, Non-Relieving, 0.5-10 psig
DR-2MKNR-5 DR-2 Precision Regulator, #10-32, Manifold Mount, Non-Relieving, 1-50 psig
DR-2MNR DR-2 Precision Regulator, #10-32, Manifold Mount, Non-Relieving, 2-100 psig
DR-2MNR-1 DR-2 Precision Regulator, #10-32, Manifold Mount, Non-Relieving, 0.5-10 psig
DR-2MNR-5 DR-2 Precision Regulator, #10-32, Manifold Mount, Non-Relieving, 1-50 psig
DR-2NR DR-2 Precision Regulator, #10-32, Non-Relieving, 2-100 psig
DR-2NR-1 DR-2 Precision Regulator, #10-32, Non-Relieving, 0.5-10 psig
DR-2NR-5 DR-2 Precision Regulator, #10-32, Non-Relieving, 1-50 psig
DR-2P DR-2 Precision Regulator, 1/8" NPT-#10-32, Relieving, 2-100 psig
DR-2P-1 DR-2 Precision Regulator, 1/8" NPT-#10-32, Relieving, 0.5-10 psig
DR-2P-5 DR-2 Precision Regulator, 1/8" NPT-#10-32, Relieving, 1-50 psig
DR-2PK DR-2 Precision Regulator, #10-32, Relieving, Knurled Knob, 2-100 psig
DR-2PK-1 DR-2 Precision Regulator, #10-32, Relieving, Knurled Knob, 0.5-10 psig
DR-2PKNR DR-2 Precision Regulator, #10-32, Non-Relieving, Knurled Knob, 2-100 psig
DR-2PKNR-1 DR-2 Precision Regulator, #10-32, Non-Relieving, Knurled Knob, 0.5-10 psig
DR-2PKNR-5 DR-2 Precision Regulator, #10-32, Non-Relieving, Knurled Knob, 1-50 psig
DR-2PNR DR-2 Precision Regulator, 1/8" NPT-#10-32, Non-Relieving, 2-100 psig
DR-2PNR-1 DR-2 Precision Regulator, 1/8" NPT-#10-32, Non-Relieving, 0.5-10 psig
DR-2PNR-5 DR-2 Precision Regulator, 1/8" NPT-#10-32, Non-Relieving, 1-50 psig
M-DR-2 M-DR-2 Precision Regulator, M5 Ports, Relieving, 0.1-6.9 bar
M-DR-2-1 M-DR-2 Precision Regulator, M5 Ports, Relieving, 0.03-0.7 bar
M-DR-2-5 M-DR-2 Precision Regulator, M5 Ports, Relieving, 0.07-3.4 bar
M-DR-2BP M-DR-2 Precision Regulator, R1/8-G1/8 Ports, Relieving, 0.1-6.9 bar
M-DR-2BP-1 M-DR-2 Precision Regulator, R1/8-G1/8 Ports, Relieving, 0.03-0.7 bar
M-DR-2BP-5 M-DR-2 Precision Regulator, R1/8-G1/8 Ports, Relieving, 0.07-3.4 bar
M-DR-2BPK-1 M-DR-2 Precision Regulator, R1/8-G1/8 Ports, Relieving, Knurled Knob, 0.03-0.7 bar
M-DR-2BPK-5 M-DR-2 Precision Regulator, R1/8-G1/8 Ports, Relieving, Knurled Knob, 0.7-3.4 bar
M-DR-2BPKNR M-DR-2 Precision Regulator, R1/8-G1/8, Non-Relieving, Knurled Knob, 0.1-6.9 bar
M-DR-2BPKNR-1 M-DR-2 Precision Regulator, R1/8-G1/8, Non-Relieving, Knurled Knob, 0.03-0.7 bar
M-DR-2BPKNR-5 M-DR-2 Precision Regulator, R1/8-G1/8, Non-Relieving, Knurled Knob, 0.07-3.4 bar
M-DR-2BPNR M-DR-2 Precision Regulator, R1/8-G1/8 Ports, Non-Relieving, 0.1-6.9 bar
M-DR-2BPNR-1 M-DR-2 Precision Regulator, R1/8-G1/8 Ports, Non-Relieving, 0.03-0.7 bar
M-DR-2BPNR-5 M-DR-2 Precision Regulator, R1/8-G1/8 Ports, Non-Relieving, 0.07-3.4 bar
M-DR-2C-1 M-DR-2 Precision Regulator, Cartridge, Relieving, 0.03-0.7 Bar
M-DR-2C-5 M-DR-2 Precision Regulator, Cartridge, Relieving, 0.07-3.4 Bar
M-MAR-1C Pressure Regulator, M5 Ports, Plunger Actuated, 0.7-6.9 bar
M-DR-2CK-1 M-DR-2 Precision Regulator, Cartridge Mount, Relieving, Knurled Knob, 0.03-0.7 bar
M-DR-2CK-5 M-DR-2 Precision Regulator, Cartridge Mount, Relieving, Knurled Knob, 0.07-3.4 bar
M-DR-2CKNR M-DR-2 Precision Regulator, Cartridge Mount, Non-Relieving, Knurled Knob, 0.1-6.9 bar
M-DR-2CKNR-1 M-DR-2 Precision Regulator, Cartridge Mount, Non-Relieving, Knurled Knob, 0.03-0.7 bar
M-DR-2CKNR-5 M-DR-2 Precision Regulator, Cartridge Mount, Non-Relieving, Knurled Knob, 0.07-3.4 bar
M-DR-2CNR M-DR-2 Precision Regulator, Cartridge Mount, Non-Relieving, 0.1-6.9 Bar
M-DR-2CNR-1 M-DR-2 Precision Regulator, Cartridge Mount, Non-Relieving, 0.03-0.7 Bar
M-DR-2CNR-5 M-DR-2 Precision Regulator, Cartridge Mount, Non-Relieving, 0.07-3.4 Bar
M-DR-2K M-DR-2 Precision Regulator, M5, Relieving, Knurled Knob, 0.1-6.9 bar
M-DR-2K-1 M-DR-2 Precision Regulator, M5, Relieving, Knurled Knob, 0.1-6.9 Knurled Knob, 0.03-0.7 bar
M-DR-2K-5 M-DR-2 Precision Regulator, M5, Relieving, Knurled Knob, 0.07-3.4 bar
M-DR-2KNR M-DR-2 Precision Regulator, M5, Non-Relieving, Knurled Knob, 0.1-6.9 bar
M-DR-2KNR-1 M-DR-2 Precision Regulator, M5, Non-Relieving, Knurled Knob, 0.03-0.7 bar
M-DR-2KNR-5 M-DR-2 Precision Regulator, M5, Non-Relieving, Knurled Knob, 0.07-3.4 bar
M-DR-2M M-DR-2 Precision Regulator, M5, Manifold Mount, Relieving, 0.1-6.9 bar
M-DR-2M-1 M-DR-2 Precision Regulator, M5, Manifold Mount, Relieving, 0.03-0.7 bar
M-DR-2M-5 M-DR-2 Precision Regulator, M5, Manifold Mount, Relieving, 0.07-3.4 bar
M-DR-2MK M-DR-2 Precision Regulator, Manifold Mount, Relieving, Knurled Knob, 0.1-6.9 bar
M-DR-2MK-1 M-DR-2 Precision Regulator, Manifold Mount, Relieving, Knurled Knob, 0.03-0.7 bar
M-DR-2MK-5 M-DR-2 Precision Regulator, Manifold Mount, Relieving, Knurled Knob, 0.07-3.4 bar
M-DR-2MKNR-1 M-DR-2 Precision Regulator, Manifold Mount, Non-Relieving, Knurled Knob, 0.03-0.7 bar
M-DR-2MKNR-5 M-DR-2 Precision Regulator, Manifold Mount, Non-Relieving, Knurled Knob, 0.07-3.4 bar
M-DR-2MNR M-DR-2 Precision Regulator, M5, Manifold Mount, Non-Relieving, 0.1-6.9 bar
M-DR-2MNR-1 M-DR-2 Precision Regulator, M5, Manifold Mount, Non-Relieving, 0.03-0.7 bar
M-DR-2MNR-5 M-DR-2 Precision Regulator, M5, Manifold Mount, Non-Relieving, 0.07-3.4 bar
M-DR-2NR M-DR-2 Precision Regulator, M5 Ports, Non-Relieving, 0.1-6.9 bar
M-DR-2NR-1 M-DR-2 Precision Regulator, M5 Ports, Non-Relieving, 0.03-0.7 bar
Clippard Offers Expanded Miniature Regulator Series Clippard MAR-1 Miniature Regulators Now Available with Newly Expanded Mounting Configurations When Clippard introduced a miniature regulator in 1962, the MAR-1 became very popular as a simple, robust, and cost-effective regulator in a small package with exceptionally long life. As regulator applications continue to increase, Clippard is meeting the demand with a variety of new models, options and improvements. Regulators are offered in either relieving or non-relieving versions. The relieving design maintains a constant pressure output even when downstream conditions change, while non-relieving regulators do not automatically compensate for changes in downstream flow or pressure. There is no vent to atmosphere, as in a relieving type regulator, and the
Nitro Cold Brew Coffee Clippard products are used in dispensing applications such as coffee brewing.
Oxygen Mixing Did you know? Clippard products are used for oxygen mixing applications to help support patients during surgery or while in recovery Oxygen Mixing Related Products DR-2 Precision Regulator
High Demand COVID-19 Products Clippard precision fluid control products offer solutions for ventilator and other medical equipment during COVID-19 pandemic.
Pressure Driven Flow Control How Clippard's components offer ideal solutions to pressure driven flow control of liquid media.

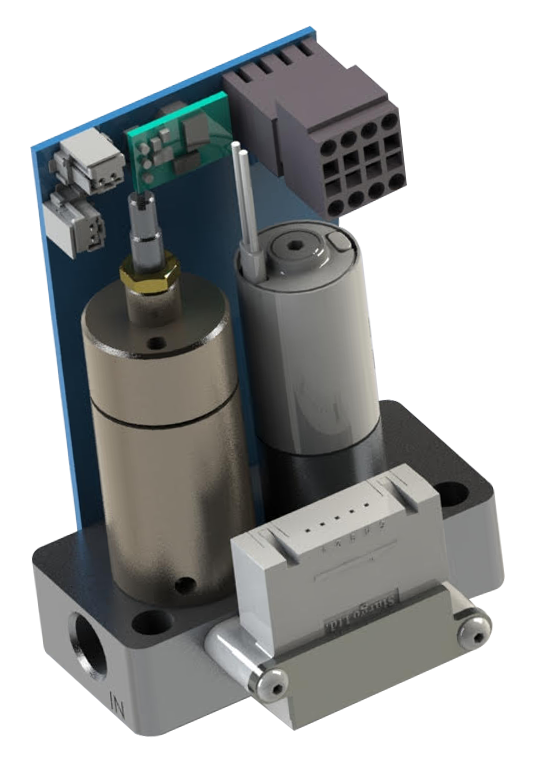

New! Cordis Electronic Flow Controller Precise, linear flow control within a closed-loop system with ultra high resolution and repeatability. The Cordis flow controller utilizes an extremely fast-reacting mems technology sensor upstream from a proportional valve, with the option of a DR-2 regulator for accurate and precise pressure control in a small package. Unlike other mass flow controllers that require a 30 minute warm-up time, large differential pressures, and limited flow ranges, the Cordis requires less than one
/
