GCV-5

More Views

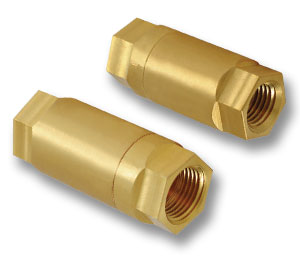

GCV-5

Check Valves permit flow in one direction only. Each has bright-dipped brass bodies that provide in-line mounting, Nitrile seals and stainless steel springs as standard. Available in 1/8" NPT, G1/8, 3/8" NPT and G3/8 ports.
Estimated to ship within 5 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • 1/4" NPT, G14, 3/8" NPT or G3/8 Threaded Ports
  • 2-Way, 3-Way & 4-Way Ported Valves
  • Robust & Miniature
  • Up to 300 psig Inlet Pressure
  • 2,000 to 4,200 l/min @ 100 psig (7 bar)

    • Flow2400 l/min @ 50 psig; 4200 l/min @ 100 psig
    Material, BodyBrass
    Material, SealsNitrile
    Material, SpringStainless Steel
    MediumAir
    MountDirect or In-Line
    NoteNot intended for pressure relief.
    Operating Pressure300 psig (21 bar) max.
    Operating Temperature Range32 to 230°F
    Port, Inlet3/8" NPT
    Port, Outlet3/8" NPT
    Pressure to OpenCracks at approx. 1.5 psig
    Product Line BrochureMechanical Valves
    Generate PDF Data Sheet
    Get CAD files:

    Notes

    Not intended for pressure relief.
