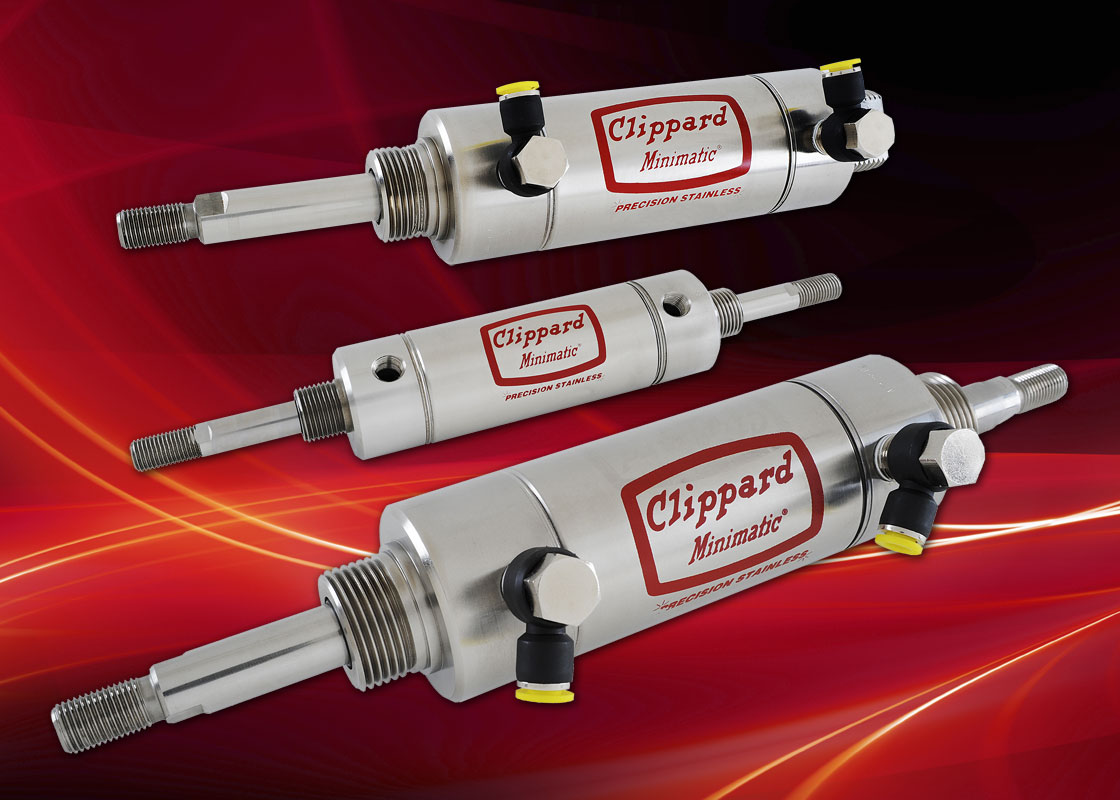

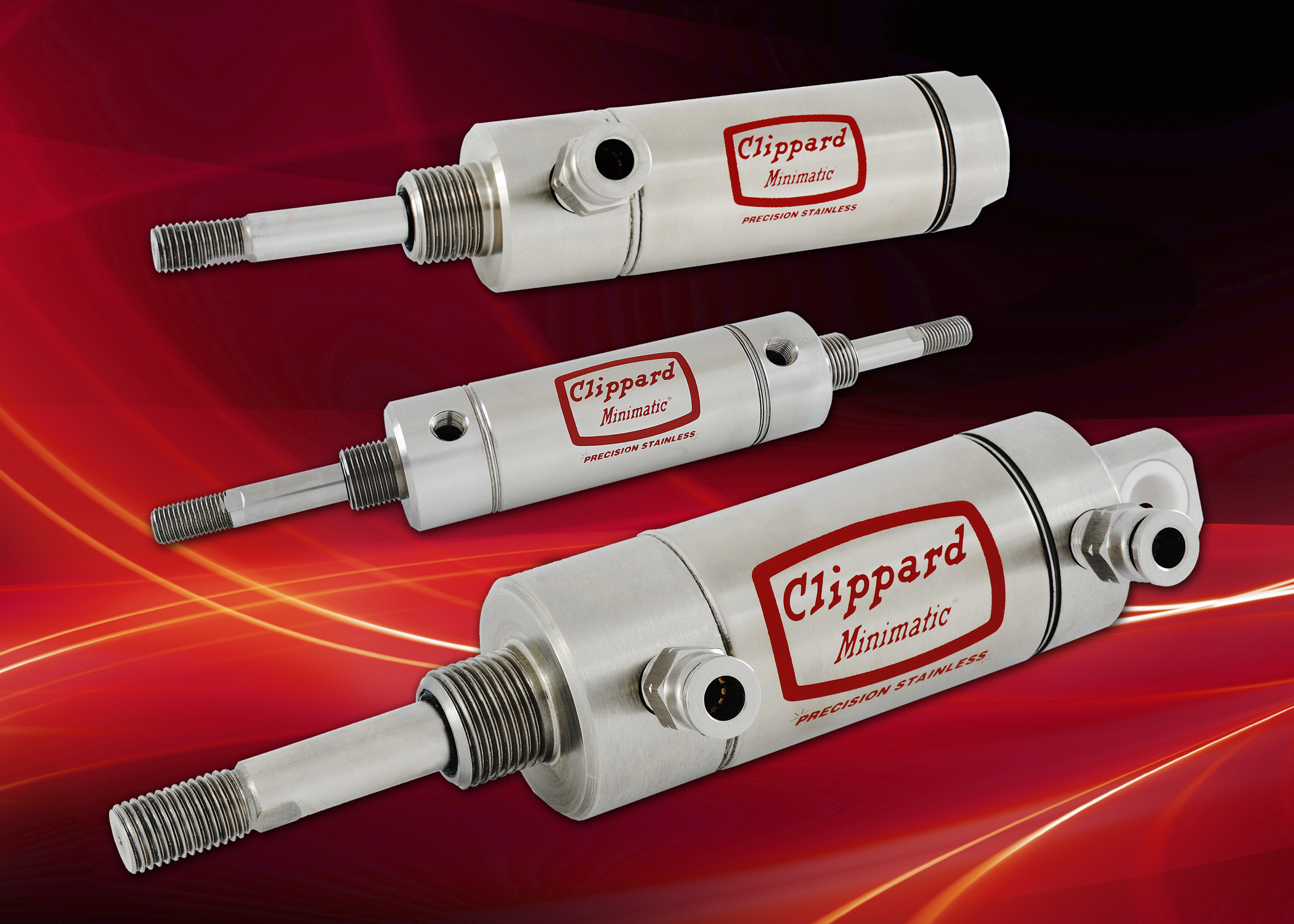

All Stainless Steel Cylinders

Designed for use in a broad range of applications including those in washdown and caustic environments, these quality cylinders are constructed of durable 303 stainless steel. They include a Nitrile rod wiper to keep potential contaminants from penetrating inside the cylinder, and are available with bore sizes from 3/4" to 2". Standard stroke lengths are from 1" up to 32" on some models.

In 1949, Clippard introduced miniature pneumatic cylinders and valves to the industry. No other manufacturer can compare to this depth of knowledge or level of experience with miniature components. Over the years, Clippard has responded to requests from cylinder users to provide additional sizes of air cylinders and auxiliary support products. While competitively priced, these products maintain the Clippard standard for quality and reliability that has been the industry standard for many years.

Clippard All Stainless Steel Cylinders for Caustic Environments

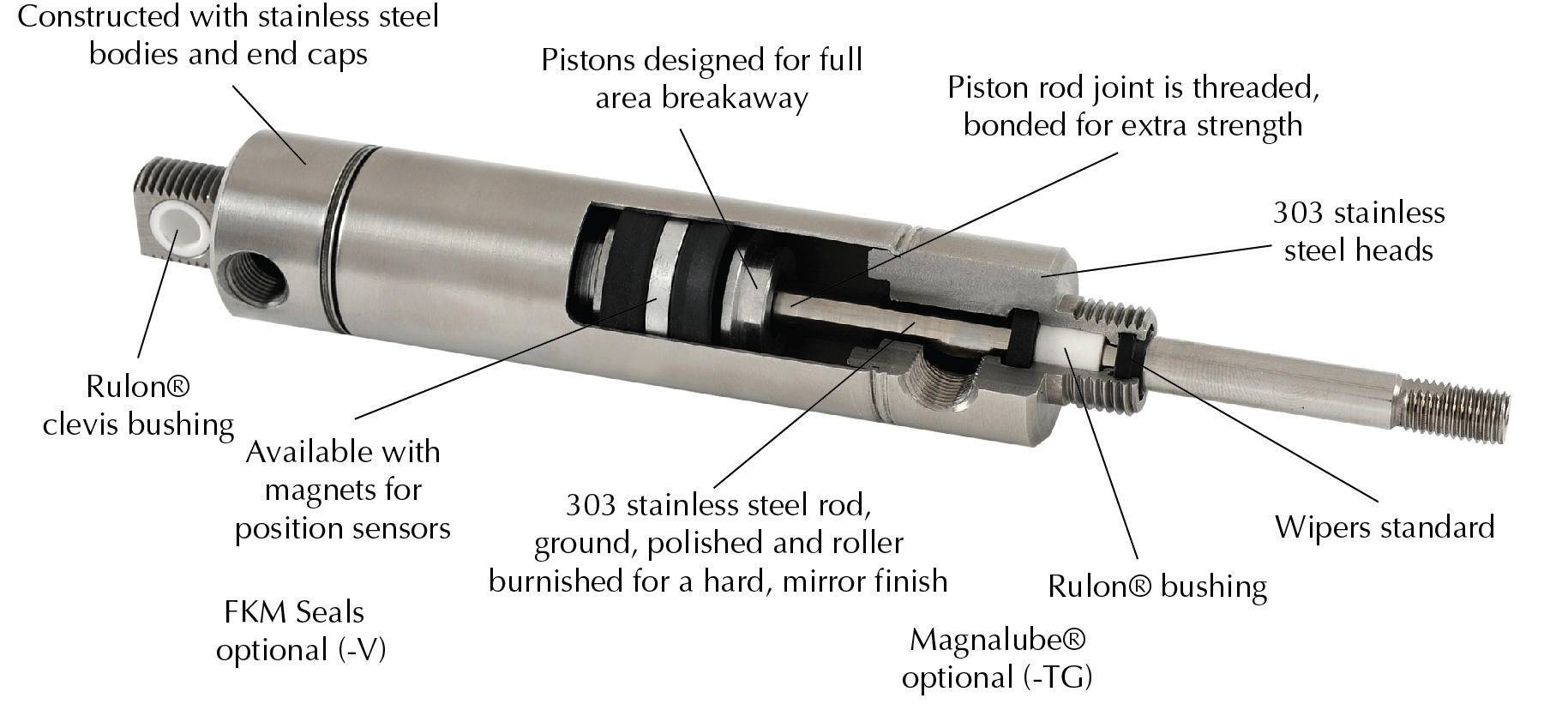

Features

• 303 stainless steel heads
• FDA Compliant Rulon® rod bushing
• FDA Compliant Rulon® clevis bushing on all universal mount cylinders
• Interchangeable with other common brands
  of round body cylinders
• FDA Compliant grease lubrication standard
• Wipers standard
• All stainless steel Air Volume Tanks available
• Temperature range: -20 to 230°F (FKM: -20 to 400°F)
• Maximum pressure: 250 psig

• Polished I.D. 304 stainless steel tubes
  for low breakaway
• Precision rolled construction for a solid,
  leakproof cylinder at a reasonable price
• Cylinder heads are machined from one side
  for better concentricity
• Rods are threaded, bonded and orbit formed
  to pistons
• Ground, polished and roller burnished
  303 stainless rods provide a smoother rod finish
  that protects rod seals, providing longer life
• Full piston area breakaway to assure full power
  from the beginning of each stroke
• Nitrile "U"-cup piston seals for full power,
  low friction and trouble-free performance
• Nitrile "U"-cup rod seals for leakproof operation
