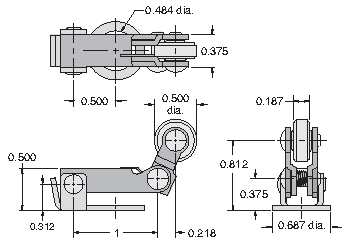

| Mount | 31/64" dia. mounting hole fits #15/32-32 threaded mounting section of valve bodies. |
|---|---|
| Weight (lbs.) | 0.0400 |
Notes

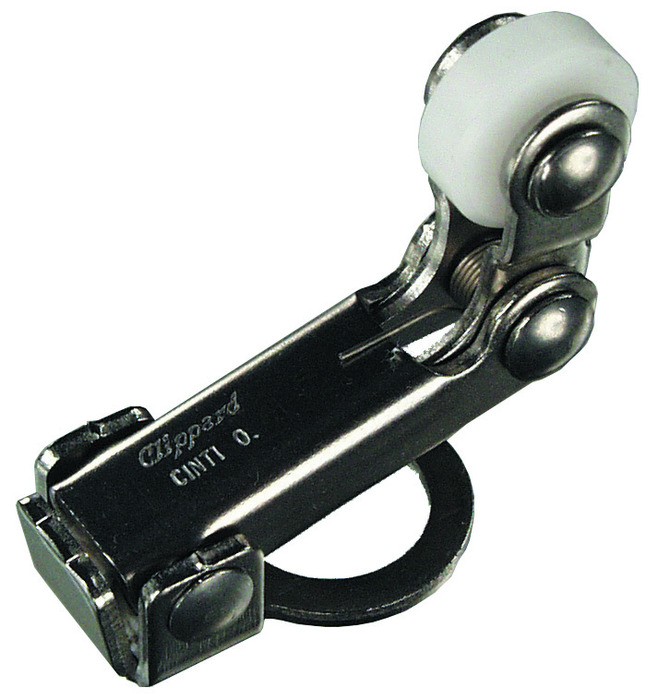

Mounts to valve body to actuate vavle when depressed by activating cam or linear travel device in one direction only; no actuation on return travel. A mounting nut (supplied), mounting bracket or washers should be used to obtain the required spacing.
