| Mount | 31/64" dia. mounting hole fits #15/32-32 threaded mounting section of valve bodies. |
|---|---|
| Temperature Range | 32 to 230°F |
| Weight (lbs.) | 0.0300 |
Notes

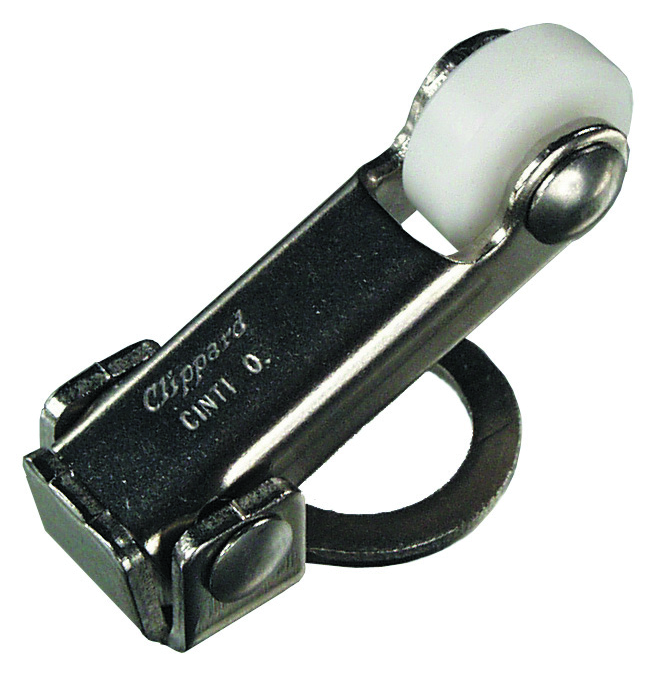

Mounts to valve body to actuate the vale when mechanically depressed; valve spring provides return. A mounting nut (supplied), mounting bracket or washers should be used to obtain the required spacing.
