Home › Products › 11752-5-BLK
11752-5-BLK

More Views

11752-5-BLK

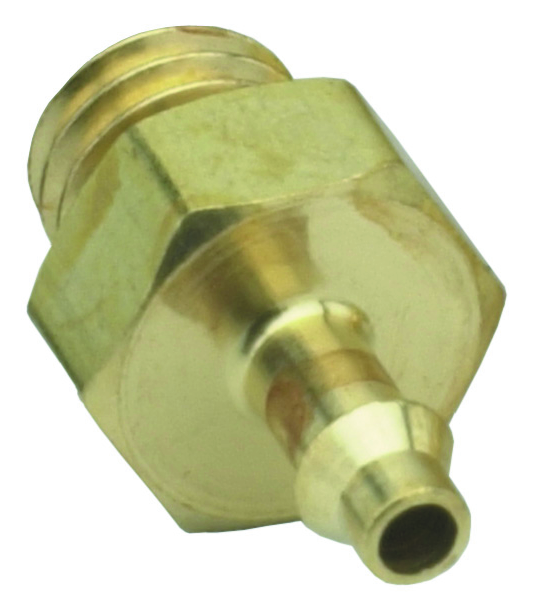

Minimatic barb fittings provide a flexile, easy alternative to ferrule and push-to-connect/push-quick fittings. Designed for use with urethane hose, barb fittings will provide a leak-free connection that will hold well behond the working pressure of the hose without the need for additional clamps.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Bulk pricing.
Must be purchased in quantities greater than 250
Contact your local Clippard Distributor for volume discounts.

  • Miniature size provides low profile
  • Electroless Nickel-Plated Brass
  • Available with many hose barb sizes
  • Holds to the burst pressure of polyurethane hose

    • AccessoriesIf ordering bulk, seals must be ordered separately: Nitrile: 11761-2, FKM: 11761-8, Nylon 11761-4

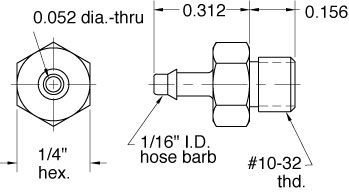

    Bottom Port#10-32 Male Thread
    Clippard Barb DesignSuperior Barb Design
    Clippard Tubing1/16" I.D. Tubing
    Hex Size1/4" Hex
    Hose Barb1/16" ID
    MaterialBrass
    PackagingBulk-250 pc., Seals Ord. Sep.
    Product Line BrochureMechanical Valves
    SealGasket
    Seal MaterialNitrile
    SealsNitrile Gasket Ordered Separately #11761-2
    Top Port1/16" Hose Barb
    Weight (lbs.)0.0050
    Get CAD files:

    Notes

    Minimatic® barb fittings provide a flexible, easy alternative to ferrule and push-to-connect design fittings for a leak free connection. Designed for use with Clippard's Polyurethane hose
