More Views

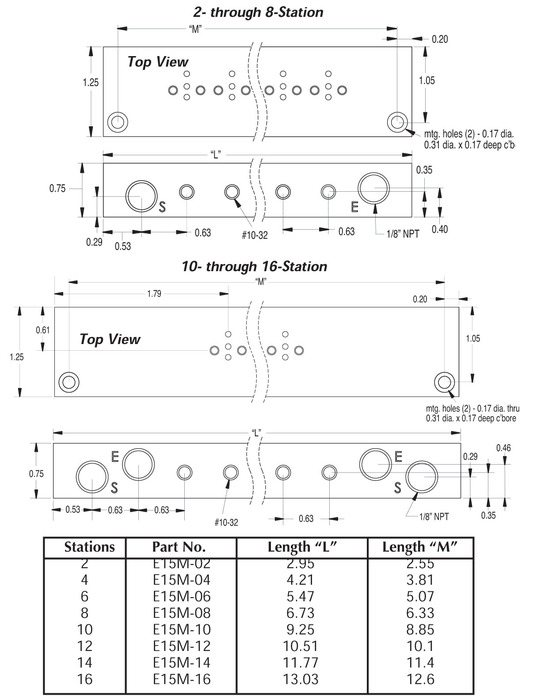

| 2D Dwg. | 2D Drawing |
|---|---|
| Length | 6.73" |
| Material, Body | ENP Brass |
| Mount | 2 M3 Screws |
| Note | When using these multi-station manifolds with Normally-Open Valve configurations, they cannot be used with Normally-Closed Valves on the same manifold. |
| Number of Stations | 8 |
| Valve Type | Standard Valve |
| Weight | 0.21 |
