1/8" & 1/4" NPT Valves

Configure JEV

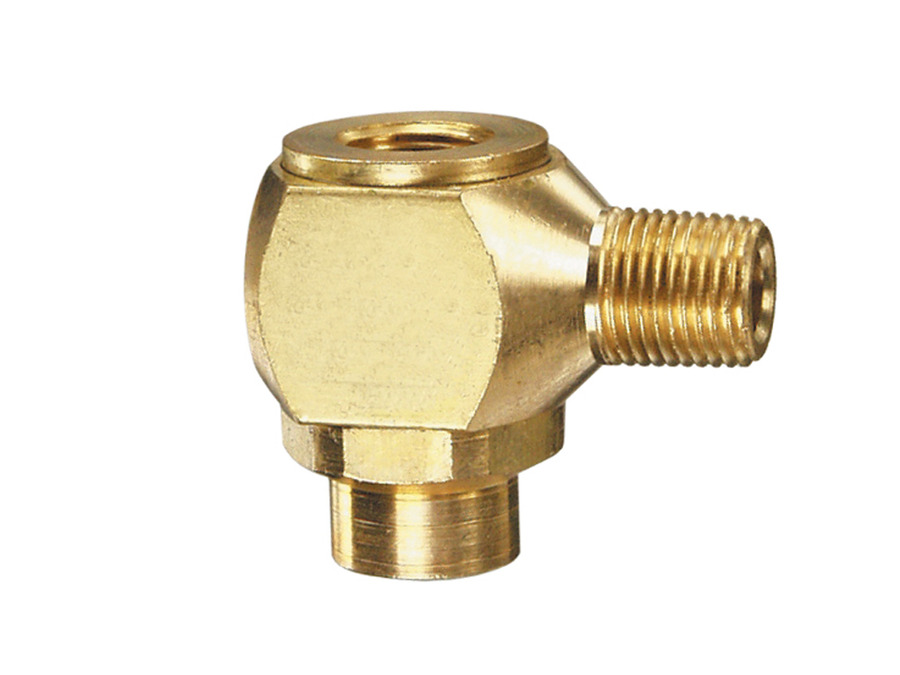

J-Series Exhaust Valves offer a variety of design features and provide fast response times and high flow with 1/8” and 1/4” NPT ports. This compact poppet type valve is constructed of brass and is 100% tested to assure the highest quality.
(Please select a valid configuration)

  • Enables use of smaller control valves
  • 15 to 150 psig maximum
  • Male outlet offers direct connection to cylinder
  • Up to 1,600 l/min @ 100 psig
  • Low shift ratio
  • Over 32 standard configurations
  • Custom configurations also available
  • Brass construction with molded Nitrile seal

    • Material, BodyBrass Body, Nitrile Poppet
    Material, SealsNitrile
    Max. Flow140 l/min @ 50 psig (3.5 bar); 1,00 l/min @ 100 psig (7 bar)
    MediumAir
    Operating Pressure15 to 150 psig (1 to 10 bar) max.
    Orientation90°
    Port, Exhaust1/8" NPT Female/Holes
    Product Line BrochureMechanical Valves
    UnitImperial
