JSV-2YFF

More Views

JSV-2YFF

Shuttle valves feature a shuttle that allows flow from one inlet to the outlet while blocking the other inlet. They may be mounted directly to valves or in-line using the hose barbs.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Poppet type (double check) valves
  • Brass body
  • Direct or in-line mount
  • Shuttle valves should not be used as a pressure selector

    • Length1.25
    MaterialBrass Body, Stainless Steel Shuttle
    Material, SealsNitrile
    Max. Flow30 scfm @ 50 psig; 50 psig @ 100 psig
    MediumAir, Water or Oil
    MountDirect or In-Line
    Operating Pressure300 psig max.

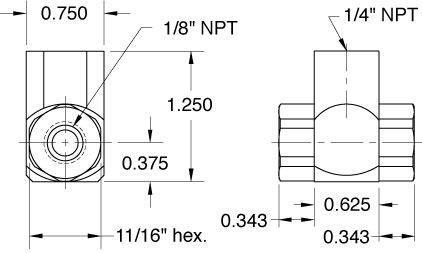

    Ports (Inlet A / Inlet B / Outlet C)1/8" NPT Fem A&B/ 1/4NPT FemC
    Pressure to Shift1 psig approx.
    Product Line BrochureMechanical Valves
    Weight (lbs.)0.2500
    Get CAD files:

    Notes

    Shuttle valves should not be used as a pressure selector
