MSV-1

More Views

MSV-1

Shuttle valves feature a shuttle that allows flow from one inlet to the outlet while blocking the other inlet. They may be mounted directly to valves or in-line using the hose barbs.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Poppet type (double check) valves
  • #10-32 threads
  • Brass body
  • Direct or in-line mount
  • Shuttle valves should not be used as a pressure selector

    • Force to Shift1/2 psig approx.
    Material, BodyBrass Body & Poppet
    Material, SealsNitrile
    Max PSI250 psig
    Max. Flow5.0 scfm @ 50 psig (3,4 bar); 9.5 scfm @ 100 psig (7 bar)
    MediumAir, Water or Oil
    Operating Pressure250 psig (17 bar) max.
    Port, ExhaustThrough port where pressure was last applied

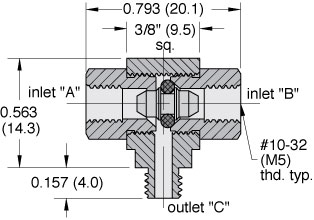

    Ports (Inlet A / Inlet B / Outlet C)#10-32 Fem A & B / #10-32 Male
    Product Line BrochureMechanical Valves
    Temperature Range32 to 230 F
    Weight (lbs.)0.0400
    Get CAD files:

    Notes

    Shuttle valves should not be used as a pressure selector. Flow from "A" to "C" or "B " to "C".
