| 2D Files | 2D Files |
|---|---|

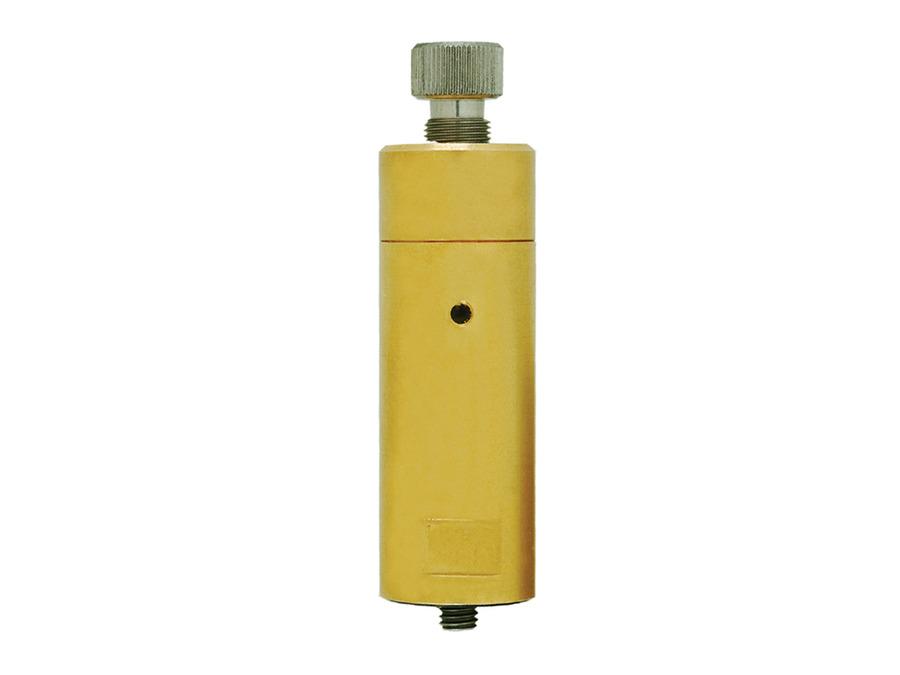

| Adjustment | Knurled Knob (Std.) |
| Data Sheet | Data Sheet |
| Force | 25 lb. nominal |
| Included Item(s) | Nuts & Lockwashers |
| Input Pressure | 300 psig max (21 bar) |
| Materal, Body | Brass |
| Material, Seals | Nitrile (FKM Optional) |
| Material, Spring & Stem | Stainless Steel |
| Max. Flow | 3 scfm @ 50 psig (3 bar), 5 scfm @ 100 psig (7 bar) |
| Medium | Air, Water* or Oil* (* non-relieving models) |
| Mount | #15/32-32 thread (M8x1.0 thread) |
| Notes | Operation: As the plunger is depressed the pressure increases proportionally to the travel; when plunger is released the input is closed and the output pressure is exhausted to atmosphere. The outlet pressure is based on 7/32" stem travel. If the stem is depressed further, the outlet pressure will increase. |
| Ports (Inlet / Outlet) | Std. - #10-32 / #10-32 |
| Product Line Brochure | Mechanical Valves |
| Relieving Option | Relieving (Standard) |
| Temperature Range | 32 to 230°F (0 to 110°C) |
| Travel Arc | 7/32" |
| Weight (lbs.) | 0.1800 |
Notes
Operation: As the plunger is depressed the pressure increases proportionally to the travel; when plunger is released the input is closed and the output pressure is exhausted to atmosphere. The outlet pressure is based on 7/32" stem travel. If the stem is depressed further, the outlet pressure will increase.
