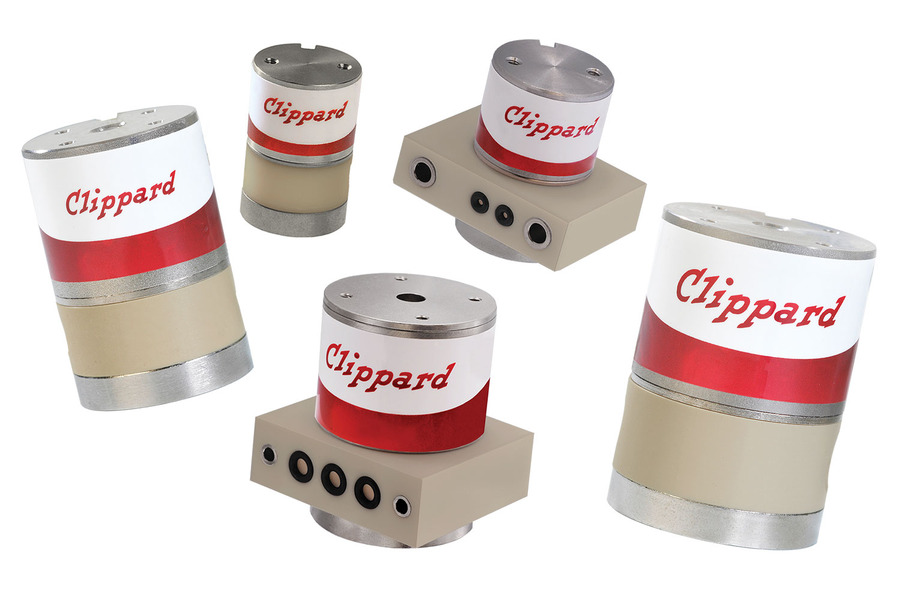

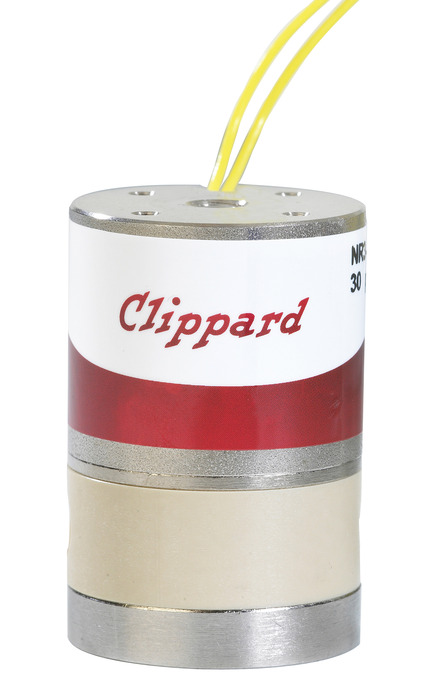

A unique feature of the PIV series is the one-piece valve stem that functions as a sealing membrane while also supporting and centralizing the poppet in the seating area. This multifunctional poppet/diaphragm/stem results in a simplified design with fewer parts (only two for the 2-way and three for the 3-way), longer life and minimal dead volume. Choose from four orifice sizes available as 2-way normally-closed, 2-way normally-open, or 3-way selector/diverter.
Special configurations available by request.
Industries and applications that commonly use these types of valves to isolate gas or liquid include: drug dispensing, laboratory equipment, analytical, chemical analysis, sampling, life science/biotech, genetic research, gas chromatography, spectrometry, DNA synthesizing, blood analysis, printing, diagnostic equipment, fermentation, water treatment, and more.
For an all-PTFE version of this valve, see the NIV series.
| 2D Drawings | 2D File |
|---|---|
| Accessories | Zero Dead Volume Fittings |
| Additional Circuitry Option | None |
| Connection | 18" Wire Leads (45 cm) |
| Data Sheet | Data Sheet |
| Documentation | CE, RoHS |
| Function | 3-Way Selector/Diverter |
| Material, Wetted | PTFE, PEEK, FKM (Manifold Version Only) |
| Max. Flow | 6 to 60 l/min. @ 30 psig (2 bar) |
| Medium | Air, Water, Gas or Compatible Fluids |
| Mount | In-Line |
| Operating Pressure | Vac. to 30 psig |
| Operating Temperature Range | -20 to 158°F (-29 to 70°C) |
| Orifice / Port | 0.062" / 1/4-28 UNF |
| Product Line Brochure | Isolation Valves |
| Response Time | 5 to 50 ms |
| Thread Depth | #4-40 (max. 0.125") |
| Unit | Imperial |
| Voltage | 12 VDC |
| Wattage | 1.6 Watts |
| Weight (lbs.) | 0.2000 |
