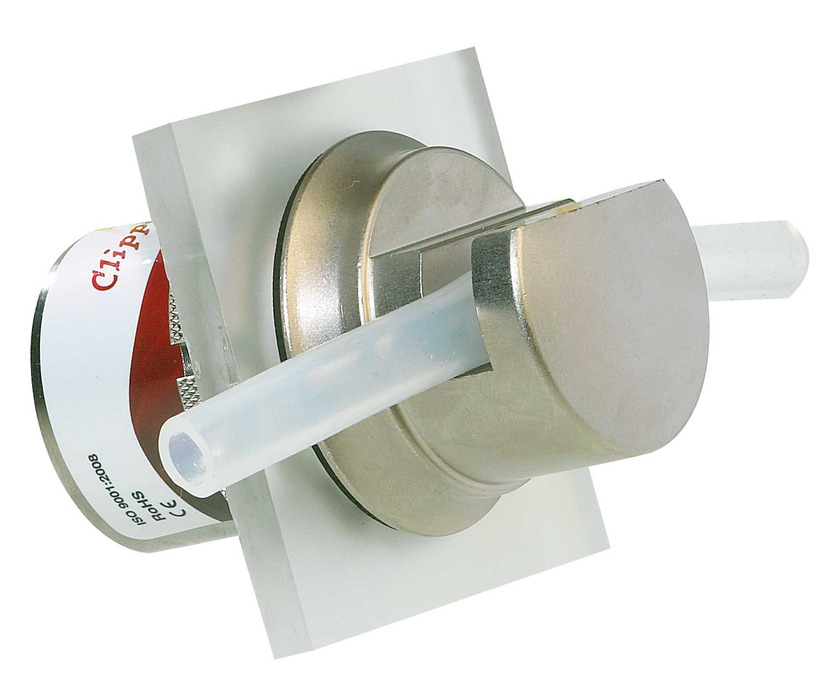

For applications that require better access or enhanced cleanliness, Clippard NPV series pinch valves are also available with a convenient panel mount option. Panel mounted pinch valves provide all the same benefits as Clippard’s standard NPV series along with seamless integration and easy accessibility. Compared to standard manifold mounted pinch valves, panel mounting offers simplified installation, a cleaner appearance, and reduced contamination risk.
As with all Clippard pinch valves, the panel mounted NPV series feature an unobstructed flow path with zero dead volume—only the inside of the tubing contacts the fluid.
- Unobstructed flow path
- Zero dead volume
- Each valve comes with 12” (30 cm) of silicone tubing pre-installed
- Tubing is easily replaceable
- Low power consumption
- High cycle life
- Large variety of tubing sizes available
| Additional Circuitry Option | None |
|---|---|
| Applications Form | Applications Form |
| Connection | 18" (45 cm) Wire Leads |
| Data Sheet | Data Sheet |
| Documentation | CE, RoHS |
| Function | 2-Way Normally-Open |
| Length | 3.01 (76.37) |
| Material, Body | Aluminum ENP |
| Material, Tubing | Sanitary Platinum-Cured Silicone |
| Material, Wetted | Silicone Tubing (no wetted areas in valve) |
| Max PSI | 20 psig (1.4 bar) |
| Max. Panel Thickness | 1/4" (6.4 mm) |
| Medium | Air, Water, Gas & Compatible Fluids |
| Mount | Thru Panel (max. Thickness 1/4") |
| Operating Pressure | 0 to 30 psig (2,1 bar) with standard medical/lab grade tubing |
| Operating Temperature Range | -20 to 158°F (-29 to 70°C) |
| Orifice / Wattage | 1.500" / 7.2 Watts |
| Power Consumption | 7.2 Watts |
| Product Line Brochure | Isolation Valves |
| Response Time | 50 ms |
| Tubing | 1/4" ID-3/8" OD, Medical |
| Tubing, Durometer Hardness | 50 Shore A |
| Tubing, Elongation at Break | 825% |
| Tubing, Length | Comes with 12" (304.8 mm) of selected tubing. Additional tubing available separately. |
| Tubing, Modulus at 200% | 299 psi (21 bar) |
| Tubing, Tear Strength | 263 ppi |
| Tubing, Tensilel Strength at Break | 1,388 psi (96 bar) |
| Tubing, Wall Thickness | 0.0625" (1.6 mm) |
| Unit | Imperial |
| Voltage | 24 VDC |
| Wattage | 7.2 Watts |
| Weight (lbs.) | 0.6000 |
