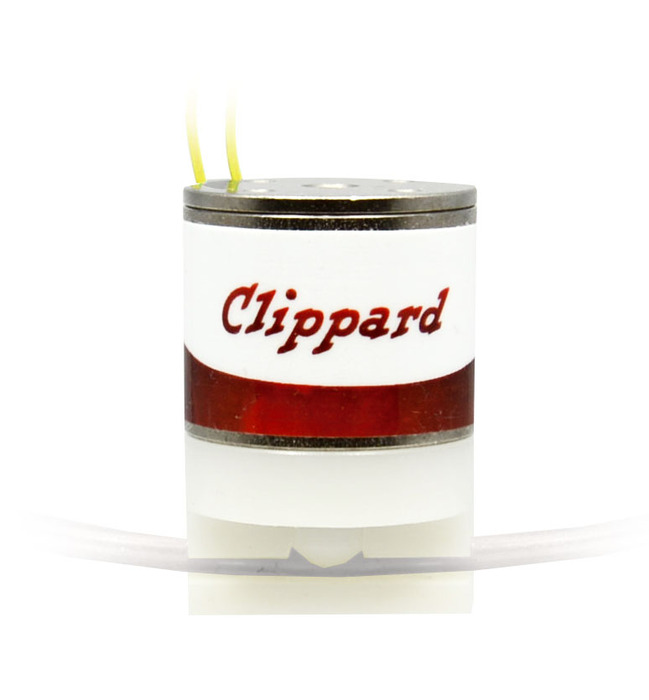

NPV2-1O-02-12

The NPV Series Pinch Valve is a solenoid-operated device that is designed to open and close tubes for controlling flow of liquids and gases. Other valve types have internal passages that may cause small amounts of fluid to remain in the valve. Pinch valves have no areas or dead volume where fluid can become trapped. Only the inside of the tubing contacts the fluid. Energizing the solenoid retracts or attracts the plunger, which opens or closes the tube. De-energizing the solenoid will allow the plunger to return to its original state.

Estimated to ship within 10 business days

Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.

Small, compact design

Hygienic and easy to clean (replace tubes)

Low power consumption

High cycle life

Can handle whole blood and particulate matter

Unobstructed flow path

Each valve comes with 12" of silicone tubing

Variety of tubing sizes available

Tubing is easily replaceable

Available in 2-Way Normally-Open or Normally- Closed or 3-Way
(one tube N.O. and one tube N.C.) configurations

Common industries that use pinch valves for the benefits of isolating media from a mechanical valve include: drug dispensing, laboratory equipment, waste water, medical devices, chemical, food and beverage equipment, ceramic/glass/plastic, and solids handling.

• Compact, Robust Design

• Low Maintenance

• Fast Response Time

• Tubing Ranges from 0.031" up to 0.25" ID

• Long Life—Tubing is easy to replace

• Zero Dead Volume
         » Fluid samples are not contaminated by the previous sample through the tube.
         » There is no dead volume, as the tubing holds all the media.

• Low Power Consumption
         » Low wattage coils ranging from 1.0 watt to 7.0 watts
         » To reduce power consumption, a hit and hold circuit can be utilized to energize the valve with full range
of power and then reduce the power by up to 2/3 of the rated voltage. This not only saves power consumption,
but also minimizes heat generation.

• Unobstructed Flow Path
         » Many other types of solenoid valves have complex valve internals that obstruct flow.
         » Unobstructed flow is important when handling vital fluids. Pinch valves create minimal pressure drop.

• In Stock
         » Manufactured by Clippard in Cincinnati, Ohio, USA
         » Over 120 Stocking Distributors around the world
         » 4 Body Sizes, 1.0 watt to 7.0 watts
         » 6 Tubing Sizes
         » 2 Voltage Options, 12 VDC or 24 VDC
         » 3 Valve Types—2-Way Normally-Open or Normally-Closed or 3-Way (one tube N.O. and one tube N.C.)

Additional Circuitry Option	None
Applications Form	Applications Form
Connection	18" (45 cm) Wire Leads
Data Sheet	Data Sheet
Documentation	CE, RoHs
Function	2-Way Normally-Open (1 Tube)
Material, Tubing	Sanitary Platinum-Cured Silicone
Material, Wetted	Silicone Tubing (no wetted areas in valve)
Max PSI	30 psi
Medium	Air, Water, Gas & Compatible Fluids
Mount	#4-40. M3 also available.
Operating Pressure	0 to 30 psig (0 to 2 bar) with standard medical/lab grade silicone tubing
Operating Temperature Range	-20 to 158°F (-29 to 70°C)
Power Consumption	1.5 Watts
Product Line Brochure	Isolation Valves
Response Time	5 to 50 ms
Thread Depth	#4-40 (max. 0.125")
Tubing	1/32" ID-3/32" OD, Medical
Tubing, Durometer Hardness	50 Shore A
Tubing, Elongation at Break	815%
Tubing, Length	Comes with 12" (30 cm) of selected tubing. Additional tubing available separately.
Tubing, Modulus at 200%	299 psi (21 bar)
Tubing, Tear Strength	263 ppi
Tubing, Tensile Strength at Break	1,388 psi (96 bar)
Tubing, Wall Thickness	0.0313" (0.8 mm)
Unit	Imperial
Voltage	12 VDC
Wattage	1.5 Watts
Weight (lbs.)	0.2000
