CPC-ZFF-FEC

More Views

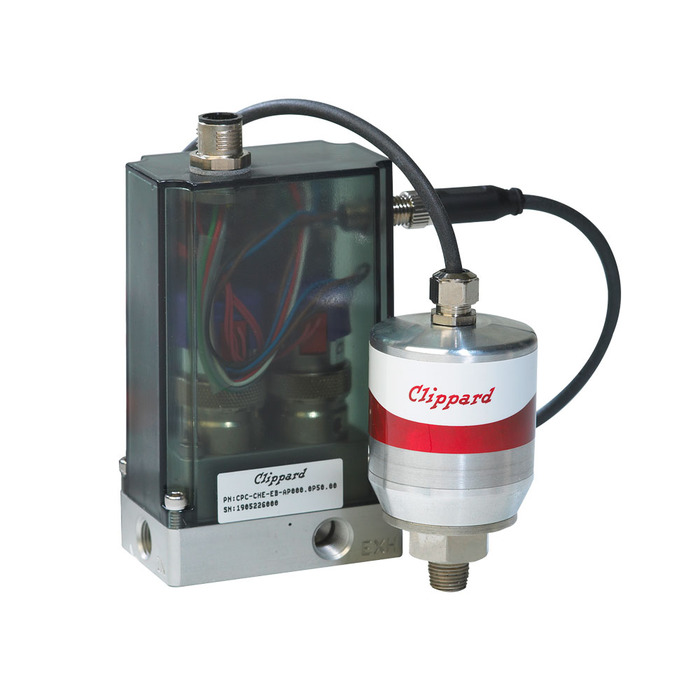

CPC-ZFF-FEC

Clippard CPS series pressure sensors are conditioned and offer a customized calibration around your application requirements, allowing for a full scale accuracy of 0.25% over the calibrated range. They can be used in conjunction with Clippard's Cordis Pressure Controller or as a standalone transducer.

Estimated to ship within 30 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.
  • Downstream sensor feedback
  • Multiple VDC signal outputs
  • Customizable pressure ranges and mounting options
  • IP65 Protection Rating
2D File2D File
Accessories3.3 VDC Serial Cable, 3': CPCH-C2, Power Cord, 6': CPCH-CA6, Actuation Cable, 8-Pin, 6': CPCH-C1, Mounting Bracket: CPCH-B1
Accuracy±0.25% of Full-Scale
Applications FormApplications Form
Calibrated Range0 to 60 psig
Data SheetData Sheet
FunctionNormally-Closed Proportional
Linearity±0.05% BFSL
Material, WettedSensor: Polyamide, Manifold: Anodized Aluminum, Valves: refer to the DVP or EVP specifications
Max. Hysteresis±0.05% of Full Scale
MediumClean, dry, non-corrosive gases
Min. Volume/Flow @ Max. Pressure≥1.00 in3 / 22.0 l/min
Mounting AttitudeAny
NoteConsult Clippard for Custom Calibrated Ranges
Operating InstructionsOperating Instructions
Operating PressureVacuum to 150 psig (10 bar)
Operating Temperature RangeProportional Valve: 32 to 120°F (0 to 39°C)
Porting1/8" NPT
Product Line BrochureCordis Electronic Controls
Protection RatingIP65
Resolution≤5 mV
Response Time<20 ms (application dependent)
Sensor MountingMale 1/8" NPT
Signal/Command0 to 5 VDC
Get CAD files:

Notes

Consult Clippard for Custom Calibrated Ranges
