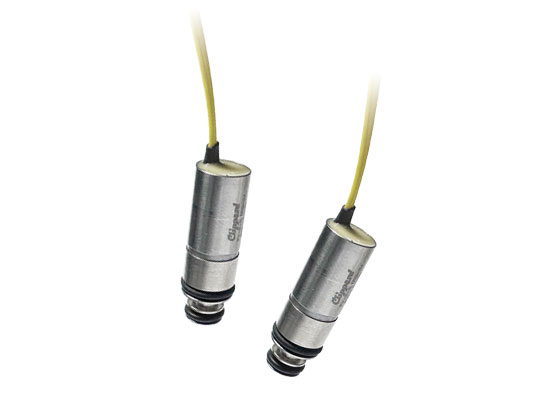

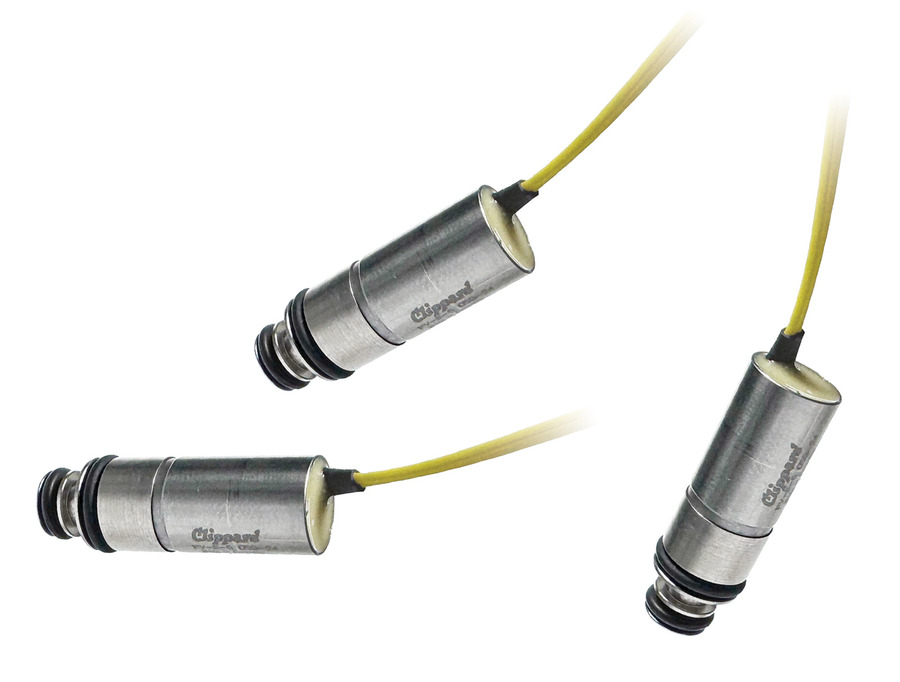

PV Micro Proportional Valves

More Views

Configure PV8

These 8 mm proportional direct-acting valves provide precise, linear control for accurate dosing and flow regulation in critical applications. With low power consumption, they offer excellent energy efficiency while maintaining quiet operation and minimal vibration. Their versatile design makes them suitable for a wide range of medical, diagnostic, and industrial applications.

Standard products offered will fit the needs of most applications, however this series can be fully customized according to the user’s unique requirements. Consult Clippard with your specific application.

(Please select a valid configuration)
  • Compact, robust 8 mm design
  • Long life Spider Technology
  • Eliminates downstream pulsations
  • Smooth proportional delivery
  • Low current power
  • Low to no noise

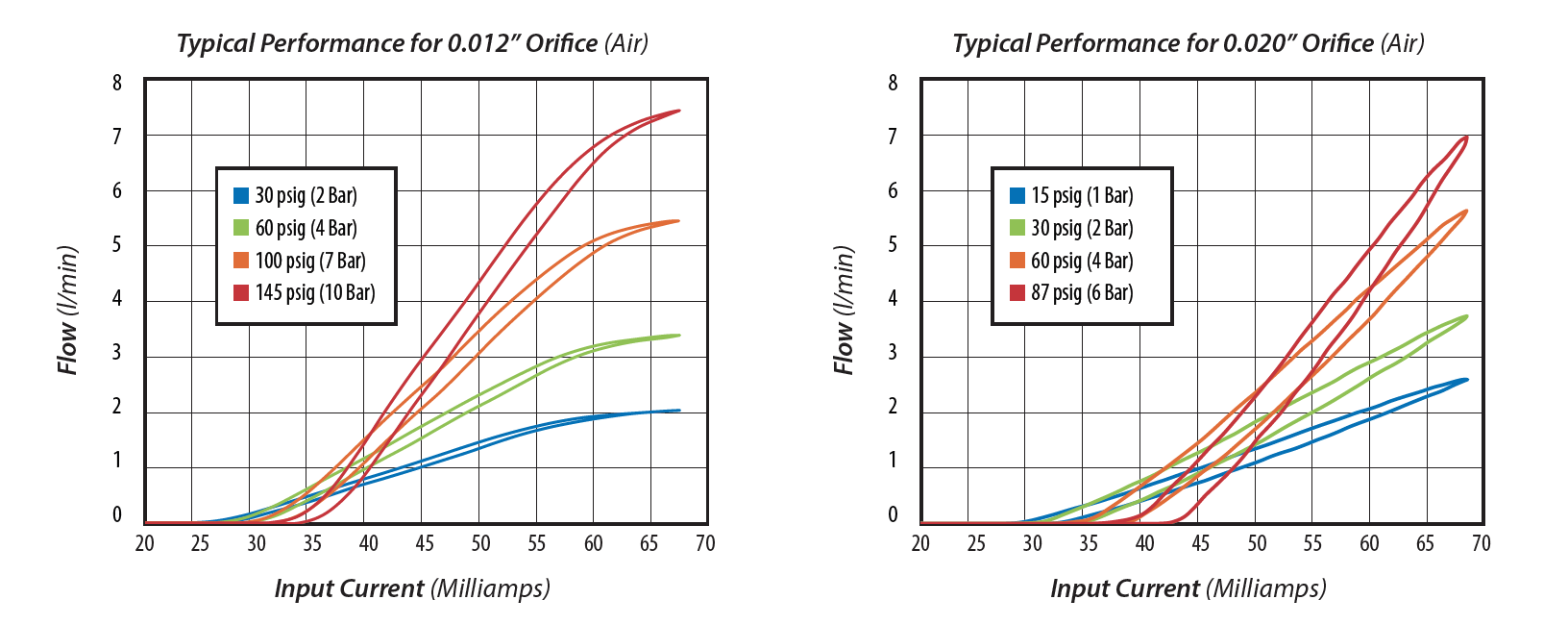

  • Exceptional variability of flow vs. command current
  • Highly customizable performance

2D File2D File
Accessories#10-32 Manifold: Aluminum, Stainless Steel; M5 Manifold: Aluminum, Stainless Steel
Coil Resistance308 Ω @ 68°F (20°C) Nominal
Connection3.15" (80 mm) Wire Leads
Current Range0 to 70 mA
Cycle Life100 million
Data SheetData Sheet
Filtration10 micron
Function2-Way Normally-Closed Proportional
Hysteresis<10% of full current
Leak Rate1.0 sccm
Material, WettedStainless Steel, FKM/FFKM
MediumAir, Inert Gases
MountCartridge
Number of Ports2
Operating Temperature Range41 to 122°F (5 to 50°C)
Product Line BrochureProportional Valves
Wattage1.5 watts @ 68°F (20°C); 2.2 watts max.
Weight (lbs.)0.011
