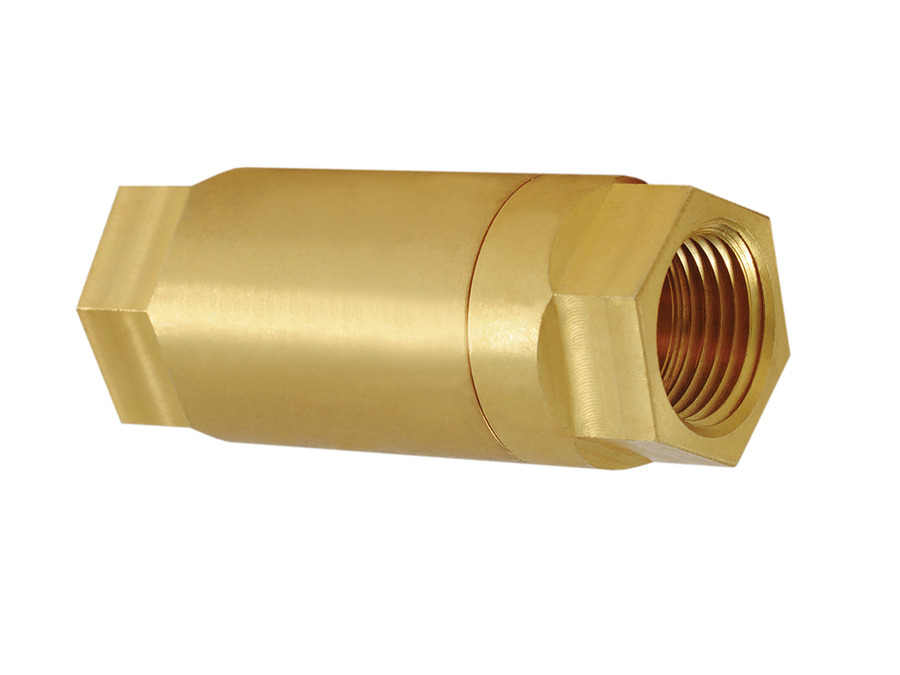

GCV Series 1/4" NPT & 3/8" NPT Check Valves

Configure GCV

Check Valves permit flow in one direction only. Each has bright-dipped brass bodies that provide in-line mounting, Nitrile seals and stainless steel springs as standard. Available in 1/8" NPT, G1/8, 3/8" NPT and G3/8 ports.
(Please select a valid configuration)

  • Miniature 1/4" NPT, G14, 3/8" NPT or G3/8 Threaded Ports
  • 2-Way, 3-Way & 4-Way Ported Valves
  • Robust & miniature
  • Up to 300 psig pneumatic
  • 2,000 l/min @ 100 psig

    • Material, BodyBrass
    Material, SealsNitrile
    Material, SpringStainless Steel
    MediumAir
    MountDirect or In-Line
    NoteNot intended for pressure relief.
    Operating Pressure300 psig (21 bar) max.
    Operating Temperature Range32 to 230°F
    Pressure to OpenCracks at approx. 1.5 psig
    Product Line BrochureMechanical Valves

    Notes

    Not intended for pressure relief.
