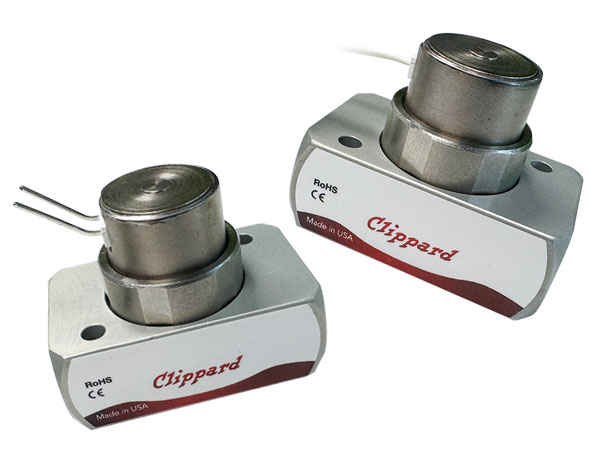

EHS High Pressure Valves

Configure EHS

The EHS series is precision-engineered to deliver robust performance in higher pressure (up to 1,000 psig) applications, prioritizing both safe functionality and the reduction of potential leak points. Building upon the foundation set by the ES series, the EHS incorporates key features such as substantial cross sectional o-rings, proven poppet designs, and strategic placement of mounting hardware outside the flow path. The EHS series is the preferred choice for high-pressure applications that demand lasting, low leak performance.

(Please select a valid configuration)
  • Specially engineered for reliability in demanding high-pressure applications
  • Easy installation and maintenance
  • Proven poppet technology
  • Compact, space-saving design with optimized flow path

2D Drawing2D File
Coil Resistance144 (12 VDC), 576 (24 VDC)
Current0.083A (12V), 0.042A (24V)
Data SheetData Sheet
Filtration40 micron (recommended)
Function2-Way Normally-Closed (Monodirectional)
Material, BodyENP Steel, Stainless Steel, Aluminum
Material, SealsNitrile Standard, FKM & EPDM Available
Material, SpringNickel Alloy
Material, WettedNickel Alloy, Stainless Steel, ENP Steel, Aluminum
Max. psig1,000 psig (69 bar)
MediumClean, Dry Air & Compatible Gases
MountInline
Number of Ports2
Operating PressureVac. to 1,000 psig (69 bar)
Operating Temperature Range32 to 150°F (0 to 65°C)
Port, Inlet1/8-27 NPT Female
Port, Outlet1/8-27 NPT Female
Product Line BrochureSpider Valves
Response Time10 to 15 ms (nominal)
SealsNitrile
UnitImperial
Voltage Operating Range90 to 120%
Wattage1 Watt (nominal)
