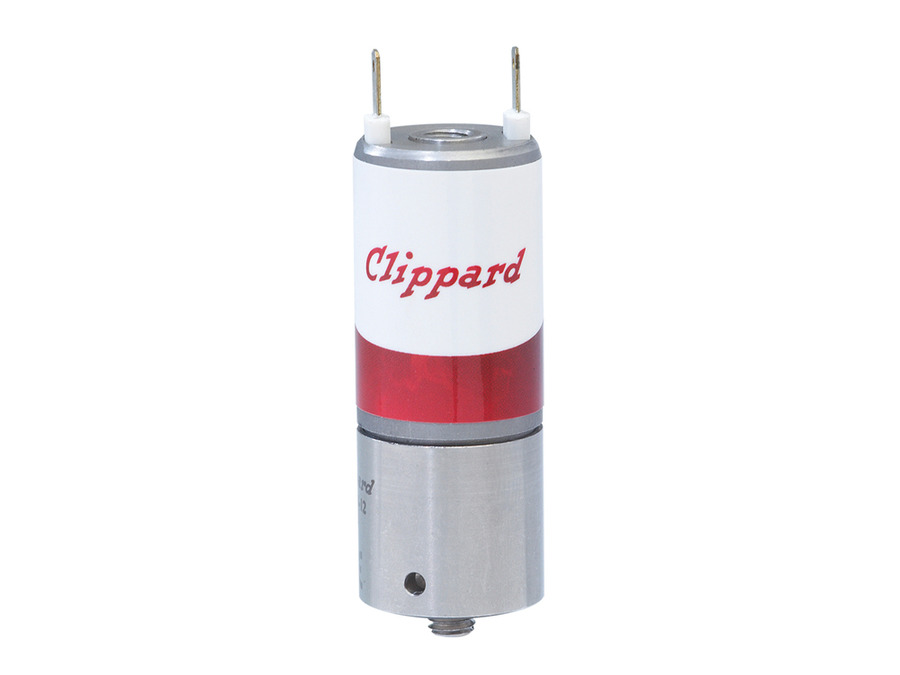

DV Series Electronic Valves

Configure DV

The DV Series electronic valves are precision-built utilizing Clippard's unique, patented valving principle. Designed as the next generation of the well-known and trusted original EV Series, the powerful DV Series is compact, quick and built to last—over 1,000,000,000+ cycles! With a solid, compact design and extremely high flow rates, these valves are well-suited for many applications in a variety of different industries including medical, analytical, packaging, manufacturing and more.
(Please select a valid configuration)

  • High flow rate
  • 2-way and 3-way
  • Industry standard for leak-free operation
  • Over 1,000,000,000+ cycles
  • Fast response time
  • Low heat rise/low power
  • Robust stainless steel "spider" flat armature spring
  • Designed to accommodate large flows with more stroke
  • CE Approved

    • 2D Files2D Files
    Coil Resistance76
    Cycle LifeOver 1 billion
    Data SheetData Sheet
    Filtration40 micron (recommended)
    Material, BodyStainless Steel
    Material, SealsNitrile
    Material, SpringStainless Steel
    Material, WettedPolyetherimide, Stainless Steel, PPS
    Max. Flow100 l/min @ 50 psig (3,5 bar)
    Max. psig100 (6.9 bar)
    MediumCompatible Fluids and Gases
    MountManifold
    Operating Temperature Range32 to 130°F (0 to 55°C) at continuous duty
    Ports1/8" NPT
    Response Time10 to 15 milliseconds
    UnitImperial
    Voltage12 VDC
    Voltage Operating Range95 to 125% of Rated Power
    Wattage1.9 Watts
    Weight0.5000
