UT0-3-PKG

More Views

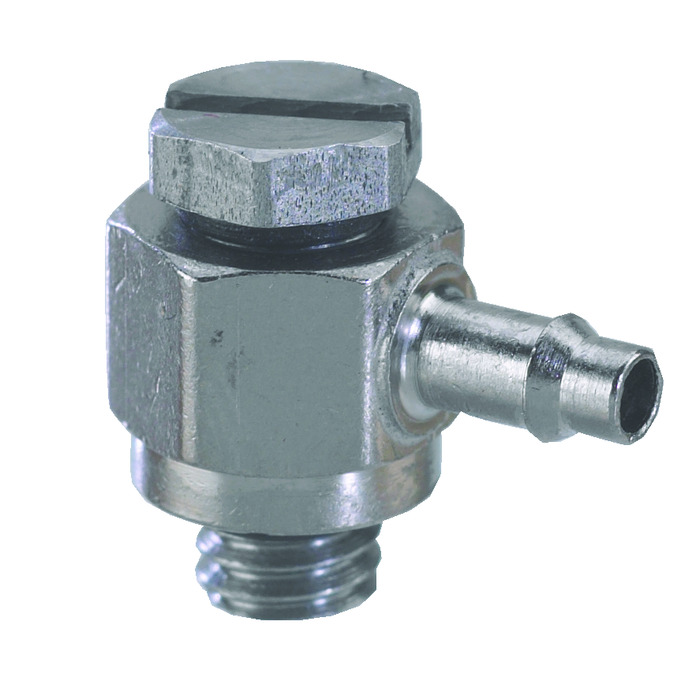

UT0-3-PKG

Minimatic barb fittings provide a flexile, easy alternative to ferrule and push-to-connect/push-quick fittings. Designed for use with urethane hose, barb fittings will provide a leak-free connection that will hold well behond the working pressure of the hose without the need for additional clamps.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Packages (5 ea.)
Contact your local Clippard Distributor for volume discounts.

  • Miniature size provides low profile
  • Electroless Nickel-Plated Brass
  • Available with many hose barb sizes
  • Holds to the burst pressure of polyurethane hose

    • Barb DesignSuperior Barb Design
    Hose Barb3/32" ID
    Material, BodyElectroless Nickle Plated Brass
    Material, SealNitrile O-Ring Std. FKM Available
    PackagePack of 5
    Port, Bottom#10-32 Male Threaded Elbow
    Port, Side3/32" Barb
    Product Line BrochureMechanical Valves
    SealsInternal/External Nitrile O-Rings Furnished
    Tubing, Inside Diameter3/32" I.D. Tubing
    TypePositionable
    Weight (lbs.)0.0050
    Wrench Flats5/16" Hex
    Get CAD files:

    Notes

    Minimatic® barb fittings provide a flexible, easy alternative to ferrule and push-to-connect design fittings for a leak free connection. Designed for use with Clippard's Polyurethane hose.
