SV-3C-24-3-V

More Views

SV-3C-24-3-V

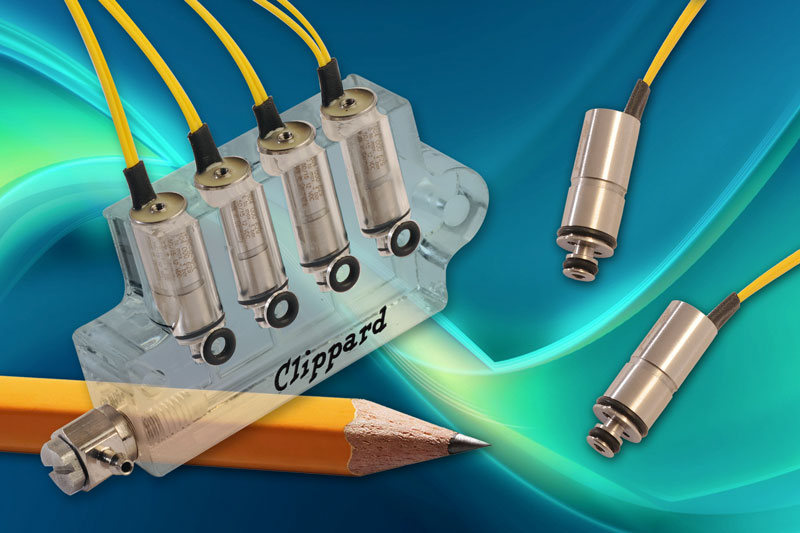

These 2-Way and 3-Way direct actuating valves offer an extremely fast response time for accurate dosing of minute volumes with the same long life you expect from the original Clippard EV line of electronic valves, in a 7 mm cartridge package. Due to very low moving weights, they are extremely quiet and emit very low vibration. Subminiature size and low energy consumption make them ideal for transportable and mobile systems, among others.
Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Operating Pressures: 0 to 22 psig; 0 to 45 psig; 0 to 144 psig; 0 to 145 psig
  • 1,000,000,000+ cycle life
  • Extremely small dead volume
  • Low vibration and noise
  • Fast response time
  • Low energy consumption
  • 100% tested

    • 2D File2d File
    Connection3" (76 mm) Wire Leads
    Cycle Life>100,000,000
    Data SheetData Sheet
    Filtration10 micron (recommended)
    Function3-Way Normally-Closed
    Leak Rate1.0 sccm
    Material, BodyStainless Steel
    Material, SealsFKM
    Material, Spring302 Stainles Steel
    Material, Wetted303, 430 and 302 Stainless Steel
    Max PSI145 (10 bar)
    MediumAir, Water, Gas or Compatible Fluids
    MountCartridge
    Number of Ports3
    Operating Pressure0 to 144 psig (0 to 10 bar)
    Operating Temperature Range41 to 122°F (5 to 50°C)
    Port, ExhaustM1.6
    Port, InletNo Thread
    Port, OutletNo thread
    Power Consumption1.2 Watts
    Product Line BrochureSpider Valves
    Response Time<5 ms
    Voltage24 VDC
    Voltage Operating Range95 to 105% of Rated Power
    Weight (lbs.)0.1400
    Get CAD files:

    Notes

    Wetted Material: Stainless Steel. 0.012" orifice.
