R-472

More Views

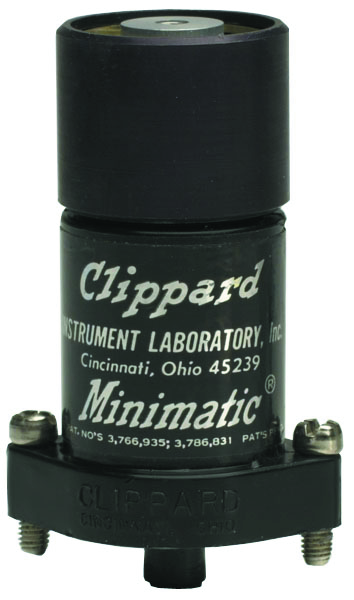

R-472

4-Way 2 Position, Fully-Ported Amplified Pilot Valve
Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.
Air Flow250 l/min @ 100 psig
Max PSI150 psig
Temperature Range32 to 180°F
Weight (lbs.)0.5500
Get CAD files:

Notes

Pilot Pressure (psig) Minimum: 8" H2O on / 1" H2O off; Pilot Supply Pressure: 45 to 100 psig

Uses

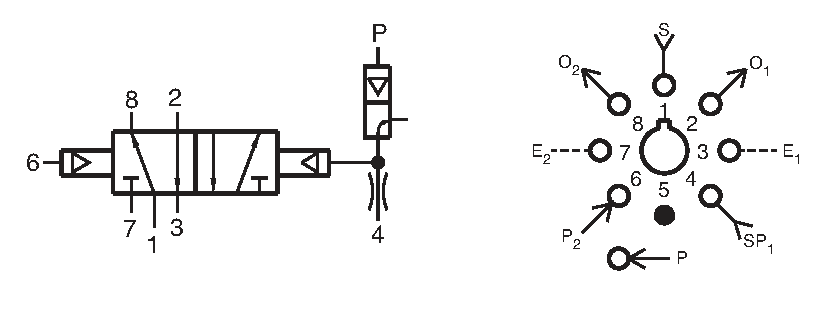

R-472 is a 4-way, fully ported, two position, low pressure piloted valve. R-472 is a hybrid combination of the R-401 and our Northeast Fluidics, Inc. model 3200 snap action valve.
