R-436

More Views

R-436

Dual 4-Way, Twin Pilot Valve, 2-Position
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.
Air Flow250 l/min @ 100 psig
Max PSI150 psig
Temperature Range32 to 180°F
Weight (lbs.)0.3200
Get CAD files:

Notes

Minimum Pilot Pressure: 20 psig

Uses

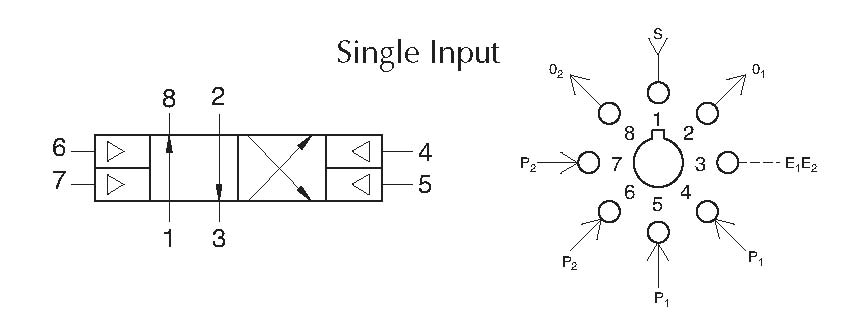

R-436 is a 4-way, two position valve with two pilots on each side. Actuating more than one pilot on the same side has no additional effect. Pilot signals must be absent from all pilots on one side before an opposite pilot will shift the valve.
