R-402

More Views

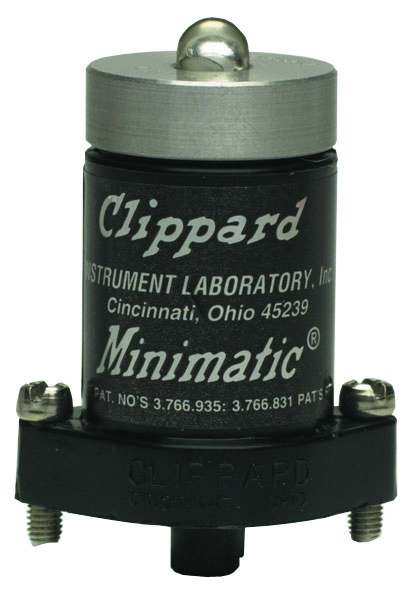

R-402

4-Way Valve, 5-Ported, 2-Position
Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.
Air Flow250 l/min @ 100 psig
Max PSI150 psig
Temperature Range32 to 180°F
Weight (lbs.)0.3200
Get CAD files:

Notes

Minimum Pilot Pressure: 40 psig (against spring), 20 psig (spring retracted)

Uses

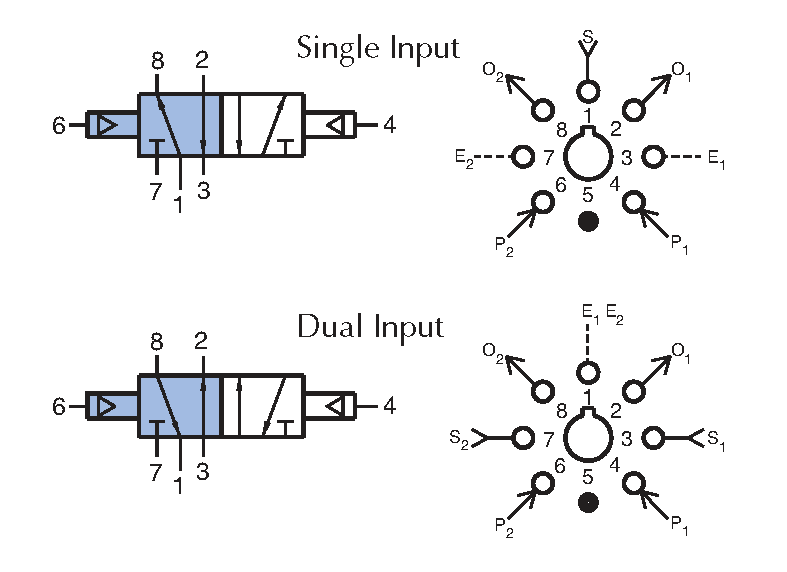

R-402 is a 4-way, double piloted, fully ported, 2- position valve. R-402 is a versatile component in basic logic circuits, and can perform all 2-,3- and 4-way functions. Operates double action cylinders and allows speed control by restricting exhaust po
