| Air Flow | 280 l/min @ 100 psig |
|---|---|
| Max PSI | 150 psig |
| Temperature Range | 32 to 180°F |
| Weight (lbs.) | 0.3200 |
Notes
Minimum Pilot Pressure: 20 psig
Uses

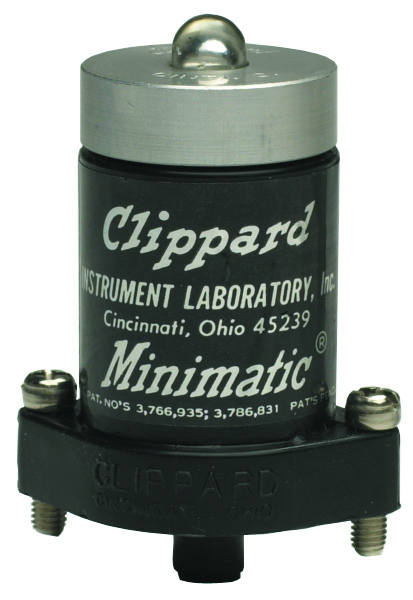

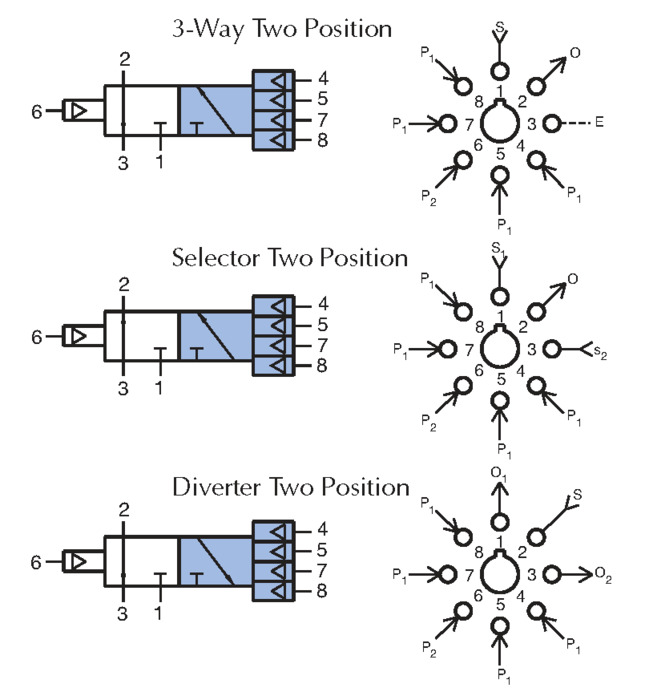

R-312 is a 3-way, two position, fully ported valve with four pilots on one position. Any one of the four pilots will actuate the valve. Actuating more than one pilot has no additional effect. Pilot signals must be absent at all four pilots before the op
