Regulators

Knowledge Base

Learn More >
Controlling pressure is an important requirement in all systems. Maximatic Regulators are adjustable from 7 to 125 psig. For applications requiring better resolution, 7 to 30 or 7 to 60 psig models with spring are available. The #10-32 size is a piston-style due to its small size, while the 1/8” to 1” are a diaphragm design.
  Maximatic® Regulator
Air Regulators provide precise air regulation from 7 to 125 psig. The adjustment knob must be pulled out to adjust the pressure, preventing accidental adjustment. Maximum inlet pressure is 150 psig.



To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.

Need help? Contact Us >

Part No.
Product Description 1-5 of 5
MMR-2P 1/8" NPT Regulator, 540 l/min
MMR-2P-P30 Maximatic Regulator, 1/8" NPT, 7 to 30 psig
MMR-2Q 1/4" NPT Regulator, 540 l/min

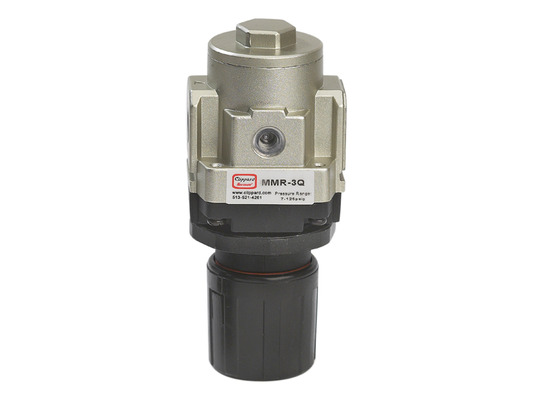

MMR-3Q 1/4" NPT Regulator, 2500 l/min
MMR-4Z 1/2" NPT Regulator, 5900 l/min
