EVP Driver Card

Knowledge Base

Learn More >

Plug-and-Play Control for Proportional Valves

The EVPD Proportional Valve Driver fast-tracks valve-control applications. This product is ideal for laboratories and OEM product development, and can be customized to fit OEM applications including control parameters. The EVPD produces driver current for Clippard's EVP series valves proportional to input control signals.

  • Linearized valve response right out of the box
  • Three selectable valve output ranges
  • Five signal inputs to choose from
  • Easy integration with existing machine controls
  • User-adjustable parameters
  • Automatic Temperature Compensation to maintain constant current
  • Two configuration options: stand-alone PCB or enclosed in housing
  • Compact size

DownloadDownload Technical Data Sheet (PDF)
DownloadDownload Installation & Ops. Manual (PDF)

To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.

Need help? Contact Us >

Part No.
Product Description 1-3 of 3
EVPD-1 EV-P Series Proportional Valve Driver, Board Only
EVPD-2 EV-P Series Proportional Valve Driver, Board with Housing
EVPD-2DIN EVPD DIN Rail Clip
Design World Reviews Clippard's EVP Proportional Control Electronic Valves Clippard’s EVP Series Proportional Control Valves Today, I’m looking at Clippard’s EVP Series proportional control valves. I have both an EVP-10-1350 and an EVP-10-6025 with me. The 1350 has a 0.013-in. diameter orifice and a maximum pressure of 50 psig, while the 6025 has a 0.060-in. diameter orifice and a maximum pressure of 25 psig. These pneumatic valves feature fast response, a small package size, long life and a variety of orifice sizes. Plus, they’re under $55. Oh, as far as orifice size, in addition to these two we have here, Clippard also offers 0.009-in., 0.025-in. and 0.040-in. sizes. There are also three connection styles and two mounting types available. Temperature range is from 32 to 150° F. These
EVPD Proportional Valve Driver I/O Manual   EVPD Proportional Valve Driver IO Manual PDF EVPD Proportional Valve Driver I/O Manual (PDF)
SCPVD Proportional Valve Driver I/O Manual   SCPVD Proportional Valve Driver IO Manual PDF SCPVD Proportional Valve Driver I/O Manual (PDF)
Eclipse 2-Way Proportional Isolation Valves FAQ Frequently Asked Questions regarding the Eclipse Proportional Isolation Valves
Forensic Analysis Many Clippard valves and other products are used in forensic analysis applications.
Blood Plasma Warming Did you know? Clippard helps ensure successful transfusions by providing proportional valves that help warm blood plasma and maintain it at optimal temperatures...
/
Design World Product Review, EVPD Proportional Valve Driver An overview of Clippard's EVP Proportional Control Valve Driver

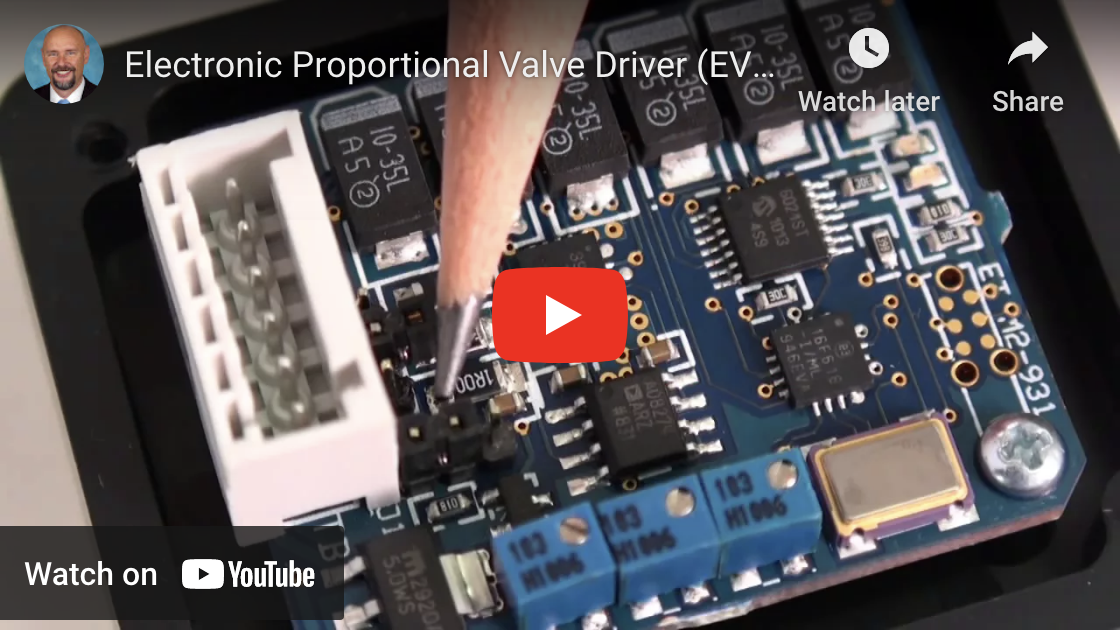

Electronic Proportional Valve Driver (EVPD) Setup EVPD Proportional Valve Driver setup tutorial       ---
