Compact Extruded Cylinders

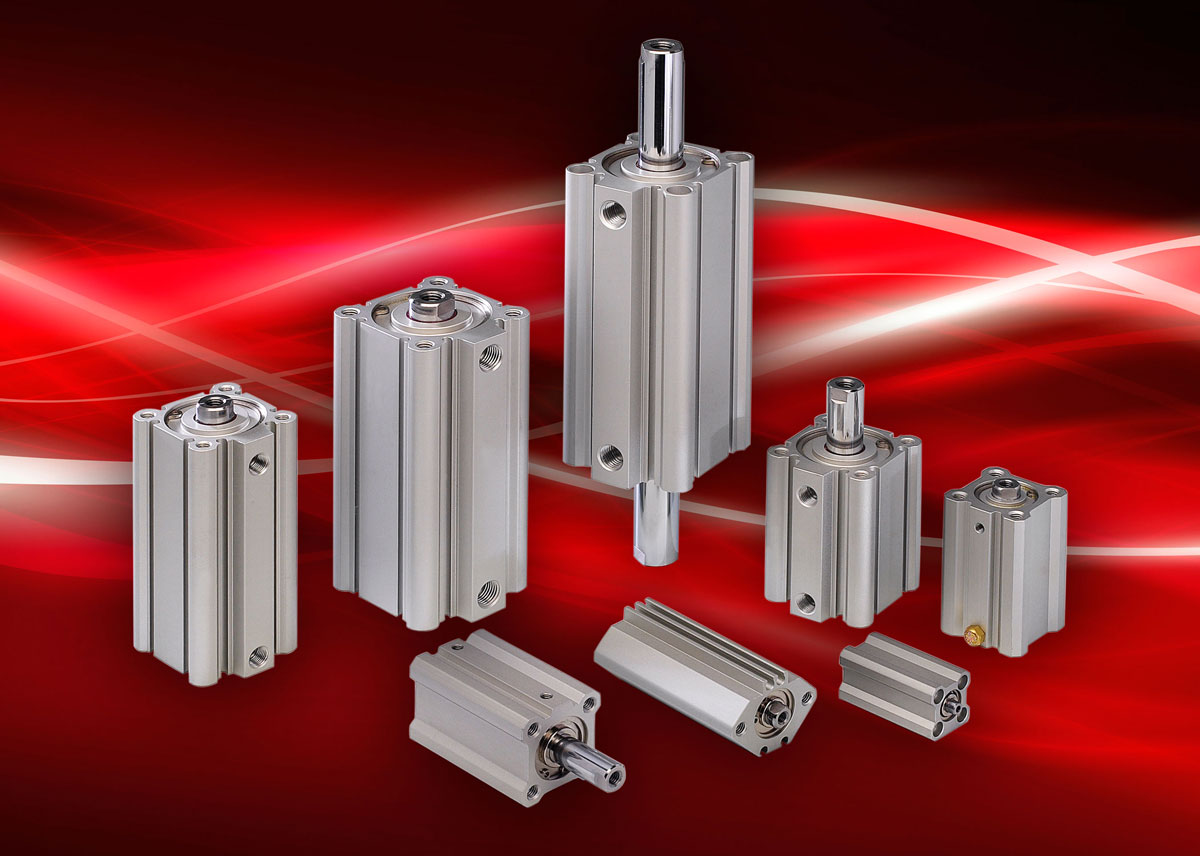

Clippard’s compact, extruded body cylinders are available in double acting, double rod, single acting spring return, and single acting spring extended models. Universally compatible, they are lightweight, small in size, and provide a reliable, long cycle life. Combined with Clippard’s long-standing history of quality products, outstanding service, and fast delivery, these cylinders provide the ideal solution for a wide range of pneumatic actuation needs at a great value.

Clippard Universal Compact Extruded Cylinders

• 7 bore sizes (12 mm to 50 mm)
• Superior service with quick delivery
• Universal metric & imperial ports available
• Multiple mounting options
• Low profile GMR sensor slides into groove
  within the cylinder
• Available with magnetic pistons
• Custom strokes also welcomed
• Interchangeable design allows for quick
  drop-in replacements
• Bumpers standard
• Contact Clippard for lead times and order quantities

Medium: Air
Max. Pressure: 14 to 145 psig (0.1 to 10 bar)
Strokes: 1/8" to 4" (5 to 100 mm)
Threads: M5x0.8, #10-32, G1/8, 1/8" NPT, G1/4, & 1/4" NPT
Temperature Range: -4 to 158°F (-20 to 70°C)
Mounting: Thread or Thru Holes
Material Aluminum, Stainless Steel
Piston & Head Seals: Nitrile Standard
Rod Seal/Wiper: Polyurethane
Bumpers: Nitrile
