Complete Pneumatic Circuits

Knowledge Base

Learn More >
Acrylic subplates provide up to three modular valves with various port options. These systems ease assembly and plumbing, resulting in reduced labor costs, fewer errors in installation and less potential for plumbing leakage. It is the fastest, most efficient circuit system available.

To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.

Need help? Contact Us >

Part No.
Product Description 1-17 of 17
VA-011 Oscillator Module or Auto-Cycling of Single-Acting Cylinder
VA-023 Two-Hand, No-Tie-Down Circuit
VA-023-GN Two-Hand, No-Tie-Down Circuit with Green Palm Buttons
VA-023-RD Two-Hand, No-Tie-Down Circuit with Red Palm Buttons
VA-028 Auto-Cycling of Double-Acting Cylinder
VA-03 Binary Redirect Module
VA-031 Back Pressure Sensing for Double-Acting Cylinder
VA-033 Back Pressure Sensing with Double-Acting Cylinder, External Power Valve
VA-034 VA-034 Add-On Provides Back Pressure Latch Control
VA-038 THNTD Circuit with Latching Control (Combo VA-023 & VA 034)
VA-038-BK THNTD Circuit with Latching Control with Black Palm Buttons
VA-038-GN THNTD Circuit with Latching Control with Green Palm Buttons
VA-038-RD THNTD Circuit with Latching Control with Red Palm Buttons
VA-06 Auto-Cycling of Double-Acting Cylinder
VA-08 Module for Single Input Clamp Control
VA-08-FP Module for Single Input Clamp Control with Foot Pedal Actuator
VA-08-GN Module for Single Input Clamp Control with Foot Pedal Actuator
Cordis Flow Controller FAQ Is the output flow of the Cordis Flow Controller linear? A: Yes, within +/- 1% FS How can I electronically control the Cordis? A: The Cordis Flow Controller can be commanded by using voltage, serial or current command. Are there other plumbing options available? A: The Cordis is available in 1/8" NPT or G1/8. (Manifold mount for specials only). Can PID changes be made in the field?
Clippard Modular Valves All Wet! H.T.E. Technologies, Clippard’s distributor in St. Louis, recently solved several processing problems for a local car wash manufacturer. The main problem of isolating water from electricity, while implementing a new wash line, was tackled by John Nebruer of H.T.E. By utilizing his knowledge in hydraulics, pneumatics and electronics, plus Clippard’s extensive expertise of similar applications, John was able to help the customer simplify the application while solving the primary concern of isolating water and electricity. Although Clippard’s modular valves and pneumatic circuit boards (acrylic subplates) have been used for many years in similar applications, the customer also wanted to streamline the entire control panel. The overall application is really three processes in one. Originally there were five brushes in the process, all controlled by one pneumatic circuit board with Clippard’s Minimatic Modular valves. However, the new operation required a wheel spray
Clippard Launches Phase II of 3D Catalog Clippard Instrument Laboratory announces the launching of its expanded 3D catalog powered by TraceParts.  This new phase includes their extensive electronic and control valve miniature pneumatic lines. Clippard Minimatics are used virtually everywhere for control, interface, sensing, logic and actuation functions. This broad range of applications spans a variety of industries including: machinery, packaging, medical equipment, processing, textiles, animation, agriculture, material handling, assembly, and many more. Clippard has a unique advantage by providing standard and special products and value added assemblies. “Our customers have been asking for 3D models of all of our products to include in their designs”, says Jim Coshnitzke, Clippard’s advertising manager. “To satisfy these requests, we have launched a three phase project to add our entire product line to our TraceParts 3D catalog. This update completes phase two and provides our customers with 3D

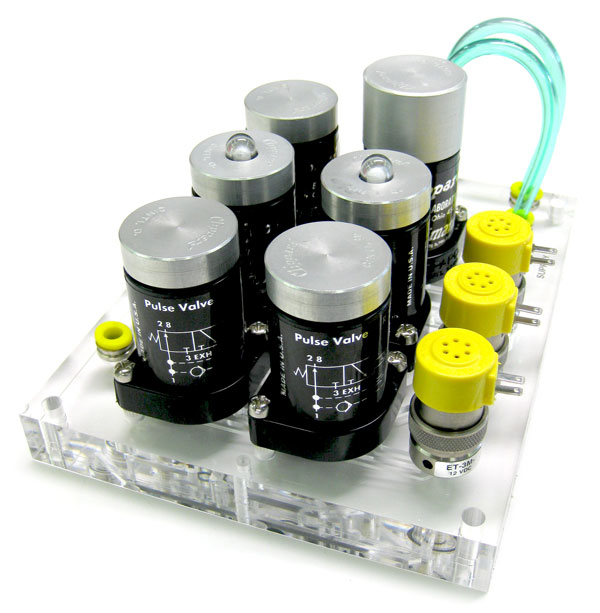

Acrylic Subplates Save Time & Headaches Acrylic subplates reduce assembly time and effort by eliminating a large number of parts, fittings, and lengths of tubing. The resulting circuit is compact, neat in appearance, and can be easily mounted for permanent installation. Learn more...
