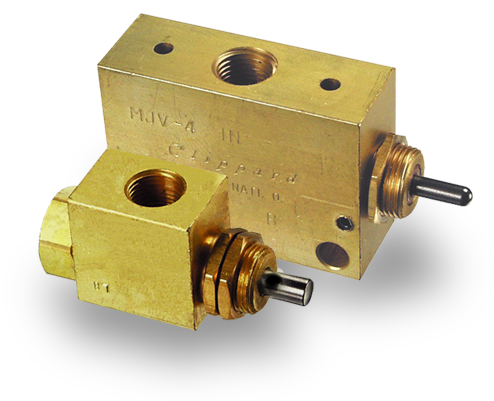

MJV-MJVO 1/8" NPT Stem Valves

Configure MJV

The MJV/MJVO series are high flow 1/8" NPT ported 2-Way, 3-Way and 4-Way valves that change their flow path when the stem is either depressed or released (spring return). The 2-Way and 3-Way valves are offered in both Normally-Closed and Normally-Open versions.
(Please select a valid configuration)

  • High flow poppet or spool design
  • MJV- are Normally-Closed (no flow when not actuated)
  • MJVO- are Normally-Open (flow until actuated)
  • Cartridge valves are designed to be installed in a custom bore

    • Included Item(s)Nut & Lockwashers
    Material, BodyBrass, ENP Optional
    Material, SealsNitrile, FKM Optional
    Material, Spring & StemStainless Steel
    MediumAir, Water, Oil or Compatible Fluids
    Mounting#15/32-32 Thread
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Product Line BrochureMechanical Valves
    Stem OptionStandard
    StyleStem
    UnitImperial
    Weight (lbs.)0.4400
