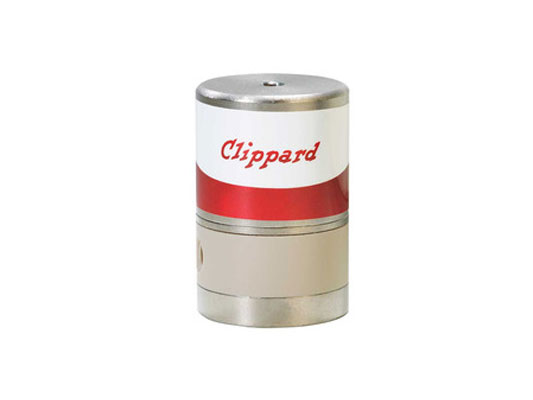

AIV Series Air-Operated Isolation Valves

Configure AIV

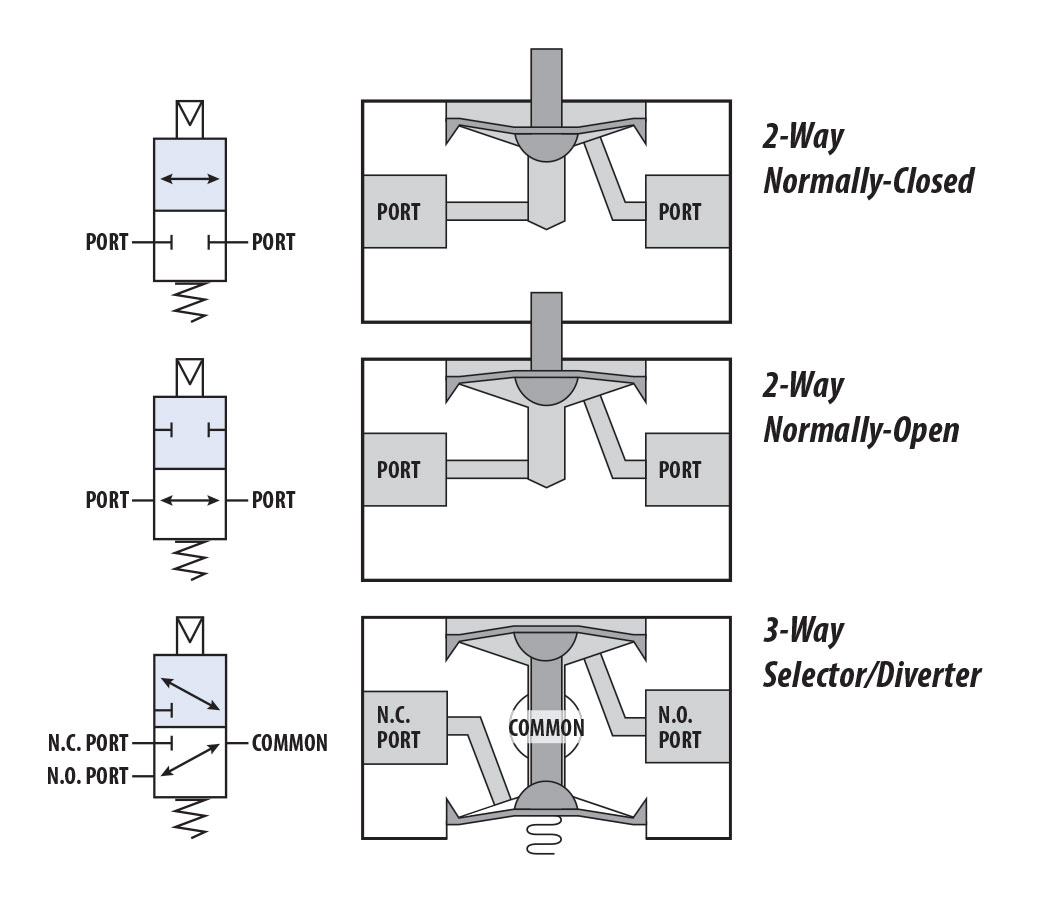

Like the NIV and PIV series, the AIV series features Clippard’s unique multifunctional valve stem design for longer life and minimal dead volume. The difference with the AIV series is that it also provides the added benefit of air operation, which is—by definition—intrinsically-safe. No solenoid means absolutely no heat buildup from the coil, making the AIV series ideal for applications that utilize temperature-sensitive media. Like the PIV, all wetted areas of the AIV series are PTFE and PEEK, making it ideal for use with corrosive media.
(Please select a valid configuration)

  • Zero power consumption (air-operated)
  • Excellent intrinsically safe valve substitute
  • No heat build-up
  • Compact, lightweight design
  • Bidirectional
  • Minimal dead volume
  • Fully flushable
  • All wetted areas PTFE or PEEK
  • High cycle life
  • Fast response time
  • Proudly made in the USA

    • 2D FilesFile
    Connection#10-32 UNF (pilot port)
    Data SheetData Sheet
    DocumentationCE, RoHS
    Material, WettedPTFE, PEEK
    MediumAir, Water, Gas or Compatible Fluids
    Mount#2-56 or #4-40
    Operating PressureVac. to 100 psig (7 bar)
    Operating Temperature Range-30 to 180°F (-34 to 82°C)
    Pilot Pressure (Max.)100 psig (7 bar)
    Pilot Pressure (Min.)30 psig (2 bar)
    Product Line BrochureIsolation Valves
    Series Flow Range10 to 180 l/min @ 100 psig (7 bar)
    Weight (lbs.)0.0980
