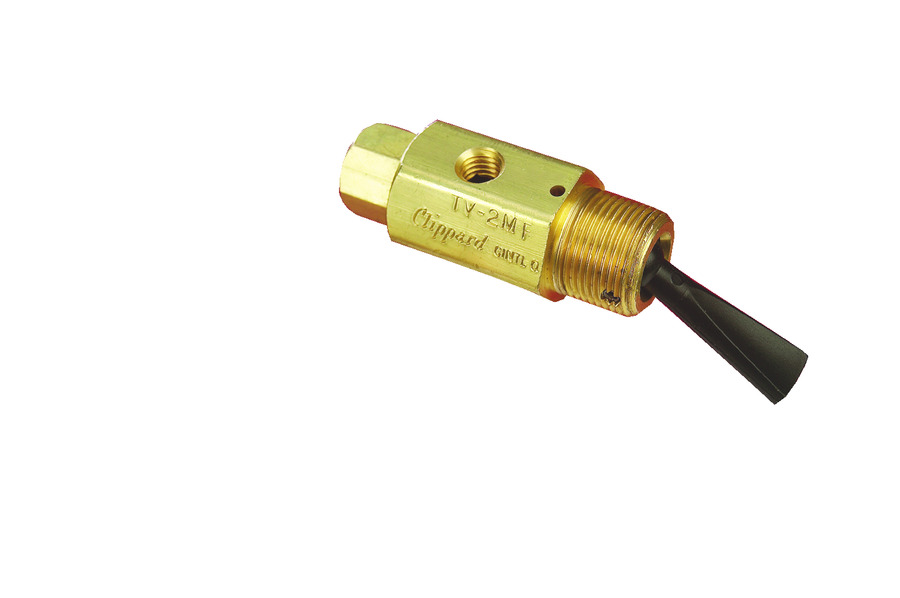

TV-2MF

The function of a 2-Way valve is to turn an air supply on and off. In the "on" position, medium flows from the inlet to the outlet, and in the "off" position, the flow is blocked. 3-Way styles have an exhaust port which vents the outlet to the atmosphere. Available with #10-32 and 1/8" NPT ports.

Unit

Function

Actuation

Ports

Material, Toggle

Estimated to ship within 5 business days

Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.

Miniature #10-32 or 1/8" NPT Threaded Ports

2-Way, 3-Way, 4-Way 2-Position Spool & Poppet Valves

Normally-Open or Normally-Closed

Brass Body, Nitrile Seals, Stainless Steel Stem & Spring

Steel or Plastic Toggles

Medium: Air, Water or Oil

Actuation	Momentary
Air Flow	95 l/min @ 50 psig, 160 l/min @ 100 psig
Force to Rotate Toggle	8 oz. nominal
Function	2-Way Normally-Closed
Included Items	Nuts & Lockwashers
Input PSI	150 psig max.
Material, Body	Brass
Material, Seals	Nitrile Std., FKM & Krytox Optional
Material, Spring	Stainless Steel Stem & Spring
Material, Toggle	Plastic
Medium	Air, Water or Oil
Mount	#15/32-32 Thread
Operating Pressure	150 psig (10 bar) max.
Operating Temperature Range	32 to 230°F
Ports	#10-32
Product Line Brochure	Mechanical Valves
Style	Toggle
Unit	Imperial
Weight (lbs.)	0.1000
