SM-3-3

More Views

SM-3-3

5/32” Single Acting, Spring Return, Sub-Miniature Cylinders
Clippard has divested our cylinder product lines to Compact Automation. Click here to learn more.

To continue ordering the same cylinders you have ordered in the past, please click here to locate your nearest Clippard distributor.
ActionSpring Return, Air Extend
Bore0.15625
Max PSI150 PSI
MediumAir
MountPlain End
Power Factor0.02
RodRotating Rod
Rod Diameter0.062
Stroke0.7750
Temperature Range30 to 230°F
Weight (lbs.)0.0300

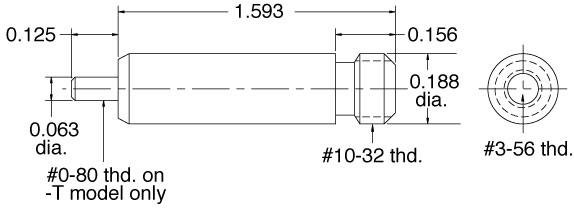

Get CAD files:
