PC-3F-YL

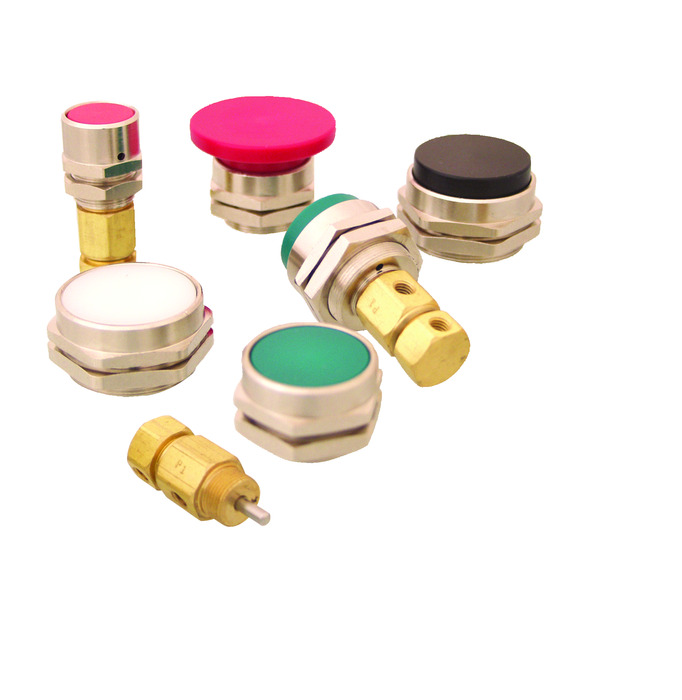

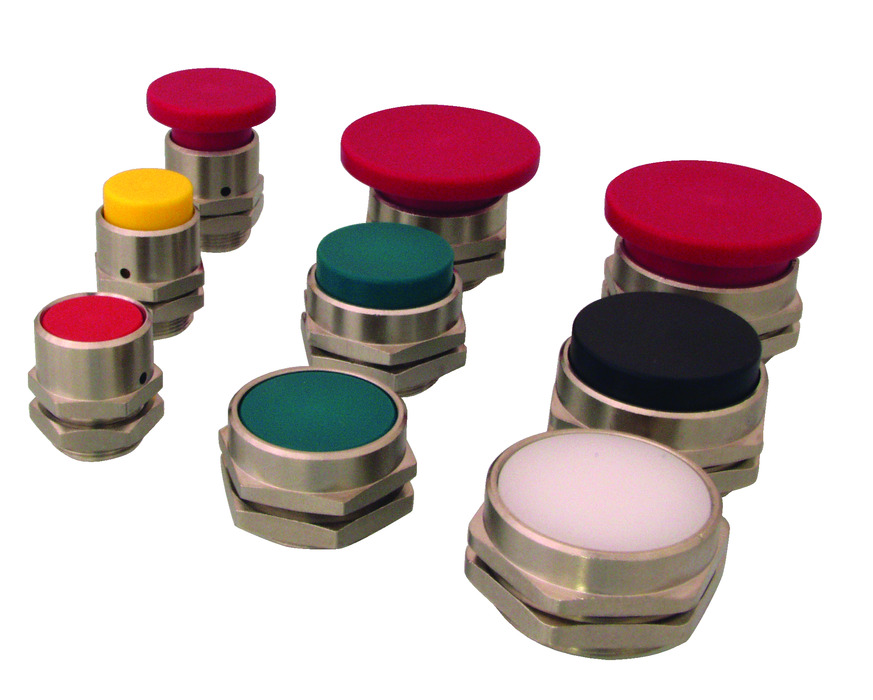

Heavy-Duty Push Button Actuators can be used on individual stem operated valves or in panel mounting applications. These push buttons are available in a variety of colors, allowing you to color code, or easily differentiate between valves when designing control systems. They feature a built-in spring so the button always returns to the extended position when released with no additional load on the valve.

The design of these push buttons allows complete actuation of the valve with no over-travel or side load to the valve assuring superior performance and long life.

Mount

Style

Color

Estimated to ship within 5 business days

Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.

• Three Mounting Thread Sizes - 16 mm, 22 mm & 30 mm • Extended, Flush & Mushroom Styles • Eight Colors to Choose (Non-standard colors available)

Color	Yellow
Mount	5/8-32 (16 mm) Thread
Note	Mount on panels or brackets up to 1/4" thick.
Product Line Brochure	Mechanical Valves
Style	Flush

Get CAD files:

Notes

Mount on panels or brackets up to 1/4" thick.
