MPA-5P

More Views

MPA-5P

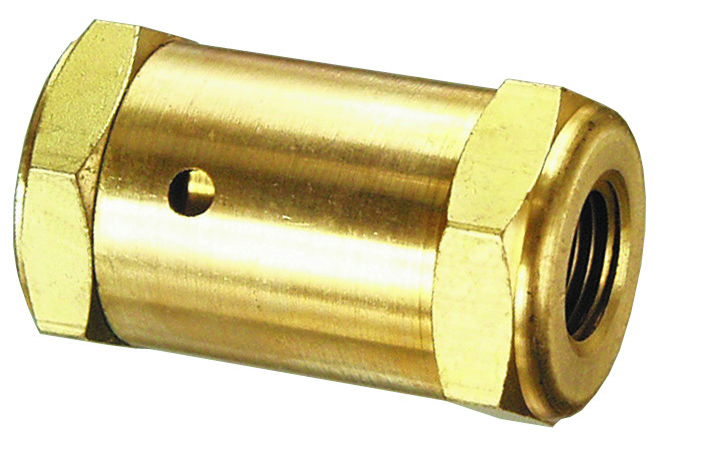

Air Pilot Valve Actuators thread onto the tops of Clippard miniature 2-Way, 3-Way, and 4-Way valves to provide fast pilot actuation from a pneumatic signal. They permit wide circuit flexibility and minimize cost, hazards and complexity by allowing many control functions to be accomplished pneumatically.
Estimated to ship within 50 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • One of the most versatile items in the Clippard line
  • Compatible with all Clippard MAV/MAVO, MJV/MJVO & FV Series valves
  • Allow many control functions to be accomplished pneumatically

    • AccessoriesActuator Spacer 12098-PKG Pkg. of 10, 12098-BLK Bulk
    Bore Size5/8"
    Input PSI250 psig max.
    Length1.312
    Material, BodyBrass, Delrin Piston
    Material, SealsNitrile
    Material, SpringStainless Steel
    Max PSI250 psig
    MediumAir
    Mount#15/32-32 Female Thread
    Port, Inlet1/8"NPT (3/8, 5/8, 1-1/4 Bore)
    UnitImperial
    Weight (lbs.)0.0900
