MPA-10P

More Views

MPA-10P

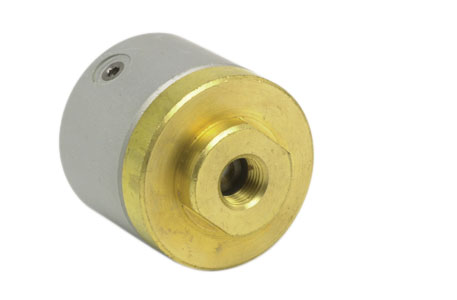

Air Pilot Valve Actuators thread onto the tops of Clippard miniature 2-Way, 3-Way, and 4-Way valves to provide fast pilot actuation from a pneumatic signal. They permit wide circuit flexibility and minimize cost, hazards and complexity by allowing many control functions to be accomplished pneumatically.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • One of the most versatile items in the Clippard line
  • Compatible with all Clippard MAV/MAVO, MJV/MJVO & FV Series valves
  • Allow many control functions to be accomplished pneumatically

    • AccessoriesActuator Spacer 12098
    Bore Size1 1/4"
    Input PSI150 psig max.
    Length1.656
    Material, BodyBrass, Delrin Piston
    Material, SealsNitrile
    Material, SpringStainless Steel
    Max PSI150 psig
    MediumAir
    Mount#15/32-32 Female Thread
    Port, Inlet1/8"NPT (3/8, 5/8, 1-1/4 Bore)
    UnitImperial
    Weight (lbs.)0.0700
    Get CAD files:

    Notes

    Single-Acting Spring Return Pilot Actuator
