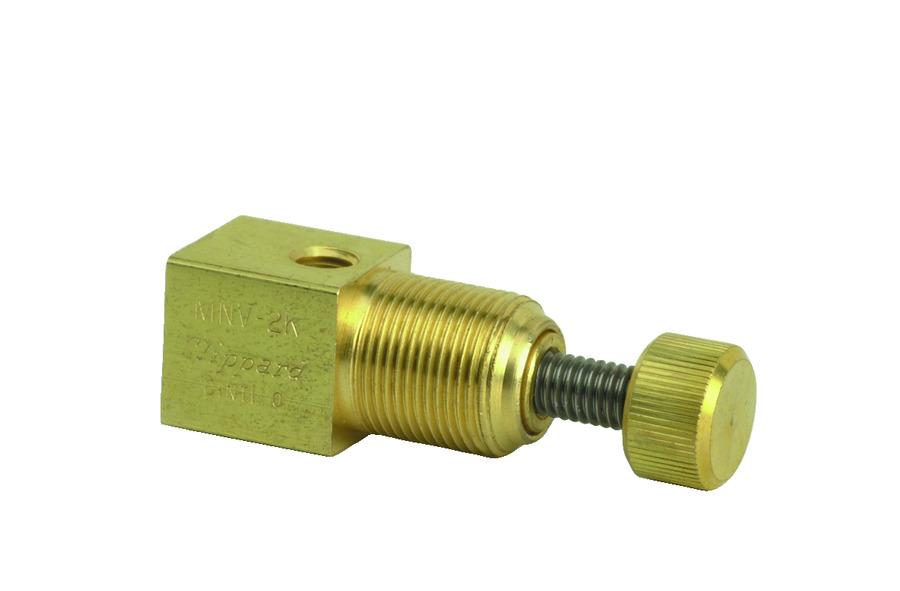

MNV-2K

Adjustable control needle valves restrict flow in both directions. There are four models offered, all with #10-32 ports, but with various needle configurations to provide coarse or fine flow adjustment.

Estimated to ship within 1 to 2 business days

Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.

Rugged and compact design

Direct, in-line or cartridge mount

Screwdriver slot adjustment or knurled knob

#10-32 or 1/8" NPT ports

Brass or anodized aluminum body

Adjustment	Knurled Knob
Air Flow	28 l/min @ 50 psig; 71 l/min @ 100 psig
Included Item(s)	Lockwashers
Input PSI	300 psig max.
Material, Body	Brass
Material, Seals	Nitrile
Max PSI	300 psig
Medium	Air, Water or Oil
Mount	In-Line (#15/32-32 thread)
Operating Temperature Range	32 to 230°F (0 to 110°C)
Product Line Brochure	Mechanical Valves
Type (Inlet / Outlet )	5° (#10-32 / #10-32) In-Line
Unit	Imperial
Weight (lbs.)	0.0600
