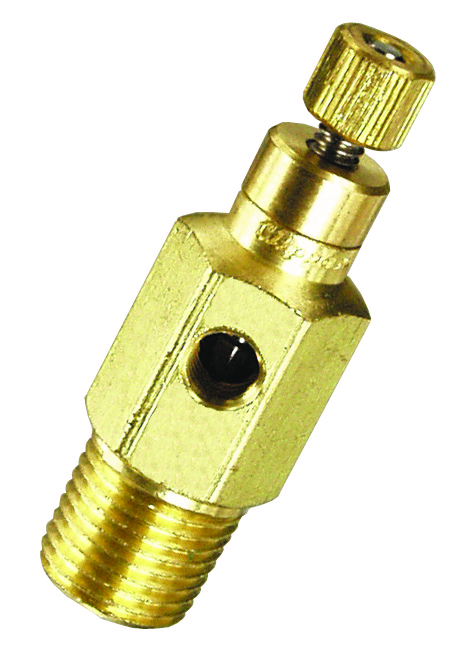

MNV-1KP

More Views

MNV-1KP

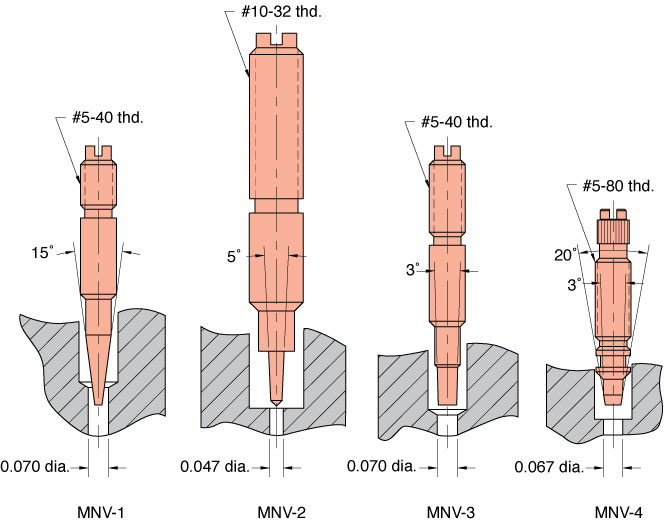

Adjustable control needle valves restrict flow in both directions. There are four models offered, all with #10-32 ports, but with various needle configurations to provide coarse or fine flow adjustment.
Estimated to ship within 2 to 3 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Rugged and compact design
  • Direct, in-line or cartridge mount
  • Screwdriver slot adjustment or knurled knob
  • #10-32 or 1/8" NPT ports
  • Brass or anodized aluminum body

    • AdjustmentKnurled Knob

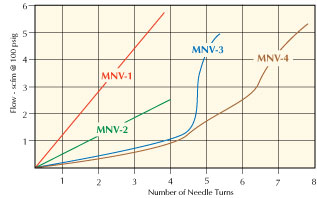

    Air Flow85 l/min @ 50 psig; 170 l/min @ 100 psig
    Included Item(s)Lockwashers
    Input PSI2,000 psig max.
    Material, BodyBrass
    Material, SealsNitrile
    Max PSI2,000 psig
    MediumAir, Water or Oil
    MountDirect (#15/32-32 thread)
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Product Line BrochureMechanical Valves

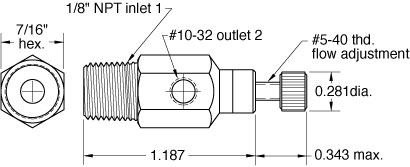

    Type (Inlet / Outlet )15° (1/8 NPT / #10-32)
    UnitImperial
    Weight (lbs.)0.0500
