MMF-3Q

More Views

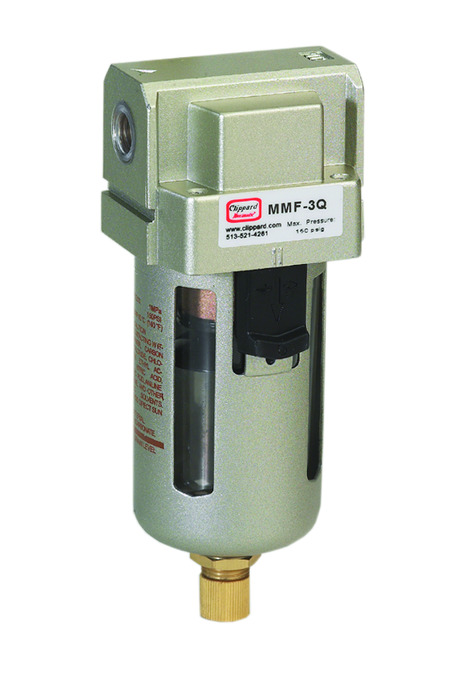

MMF-3Q

Air filters capture solid particulate and remove water by “spinning” the air centrifugally. Water and larger particles are thrown against the side of the bowl where they condense and/or fall to the lower part of the bowl. Smaller particles are captured as the air flows through the filter element.
Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Manual, Semi-Automatic or Automatic Drains
  • Large selection of mounting hardware offered
  • Easy-to-view clear sight glass. Metal bowl shield available

    • AccessoriesFilters: 5 micron: 27023, 25 micron: 27052
    Drain FunctionWhen the air supply is below 7 psig, the semi-automatic drain will open.
    Drain TypeSemi-Automatic
    Filtration (recommended)25 micron (standard)
    Material, BodyDie Cast Aluminum
    Material, BowlPolycarbonate
    Max. Flow2000 l/min
    Operating Pressure150 psig
    Ports1/4" NPT (High Flow)
