MJCV-1AB

More Views

MJCV-1AB

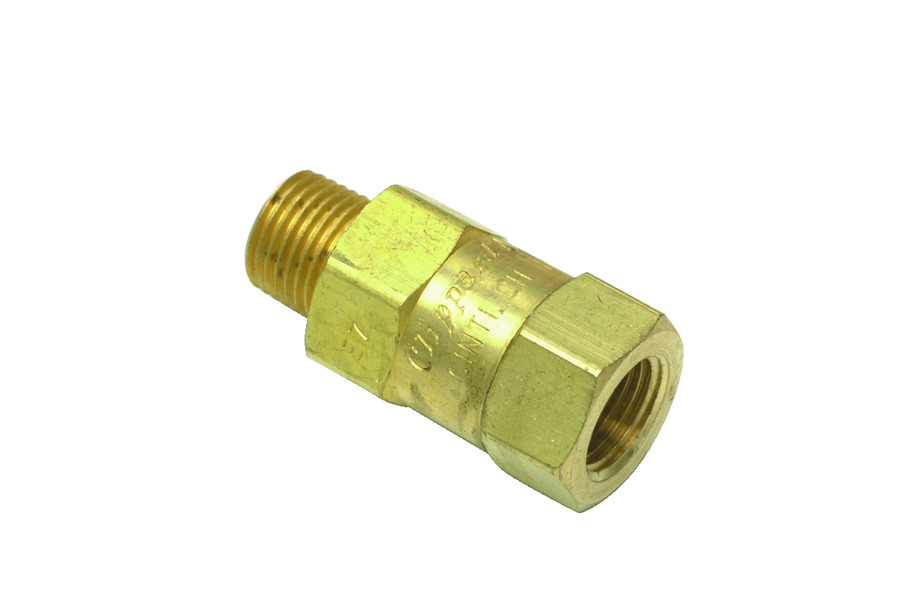

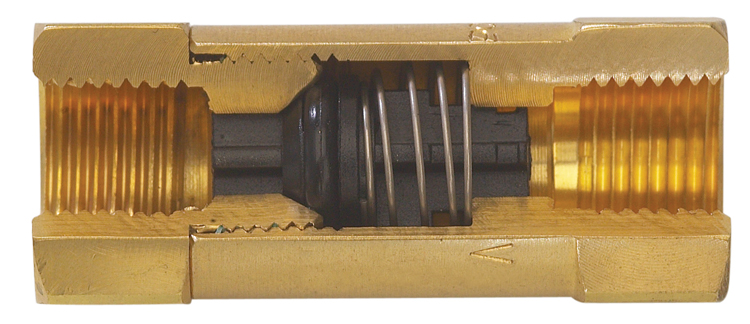

Multiple varieties of check valves permit flow in one direction only. Valve bodies provide in-line mounting, nitrile seals and stainless steel springs. 1/8" NPT inlet and outlets. 30 psig input pressure.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Not intended for pressure relieve
  • 300 psig Input Pressure
  • Side port rotates for ease of positioning
  • Features a Zytel 80G33 poppet

    • Flow570 l/min @ 50 psig; 1000 l/min @ 100 psig
    Input PSI300 psig (1,000 psig hydraulic max.)
    Material, BodyBrass
    Material, SealsNitrile
    Material, SpringStainless Steel
    MediumAir
    MountDirect or In-Line
    NotesNot intended for pressure relief. Arrow on valve body indicates direction of flow.
    Operating Pressure1,000 psig (69 bar) max.
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Ports (Inlet - Outlet)1/8" NPT (Female-to-Male)
    Pressure to ShiftCracks @ approx. 1/2 psig
    Product Line BrochureMechanical Valves
    UnitImperial
    Weight (lbs.)0.1100
    Get CAD files:

    Notes

    Not intended for pressure relief. Arrow on valve body indicates direction of flow.
