MCV-2

More Views

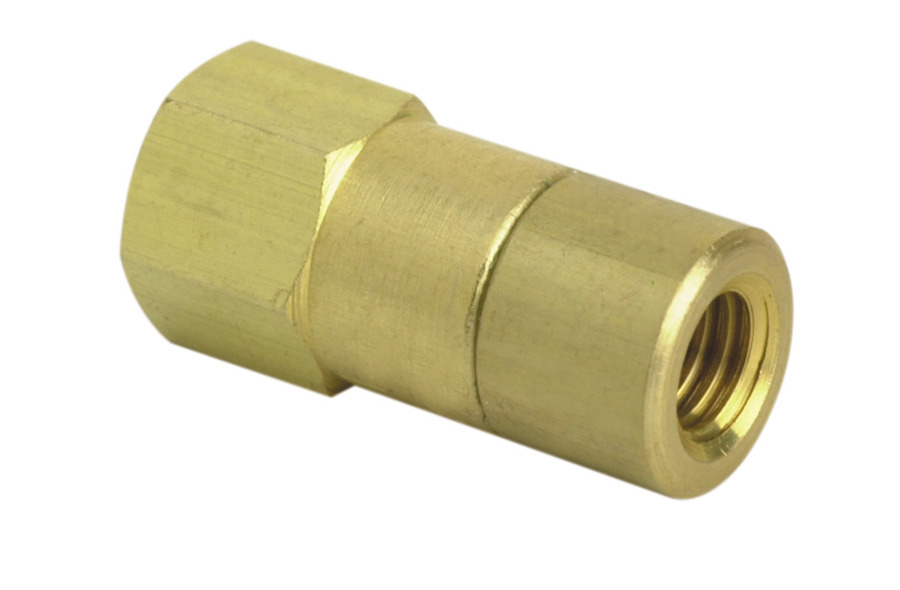

MCV-2

Check valves permit flow in one direction only. The MCV series is available with #10-32 ports and are construced of bright-dipped brass bodies that provide in-line mounting.
Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Bright-Dipped Brass
  • Direct or In-Line Mount
  • Not intended for pressure relief
  • 100 to 300 psig Input Pressure

    • Flow28 l/min @ 50 psig; 71 l/min @ 100 psig
    Input psi100 psig max.
    Length.750
    Material, BodyBrass
    Material, SealsNitrile
    Material, SpringStainless Steel
    MediumAir or Hydraulic
    MountDirect or In-Line
    NoteNot intended for pressure relief. Arrow on valve indicates direction of flow.
    Operating Temperature Range32 to 230°F
    Ports (Inlet - Outlet)#10-32 (Female - Female_
    Pressure to OpenCracks @ approx. 1 psig (0.07 bar)
    Product Line BrochureMechanical Valves
    SealsNitrile
    UnitImperial
    Weight (lbs.)0.0300
    Get CAD files:

    Notes

    Pressure to Open: 2.5 psig. Arrow on valve body indicates direction of flow.

    Uses

    Not intended for pressure relief
