MCV-1AB

More Views

MCV-1AB

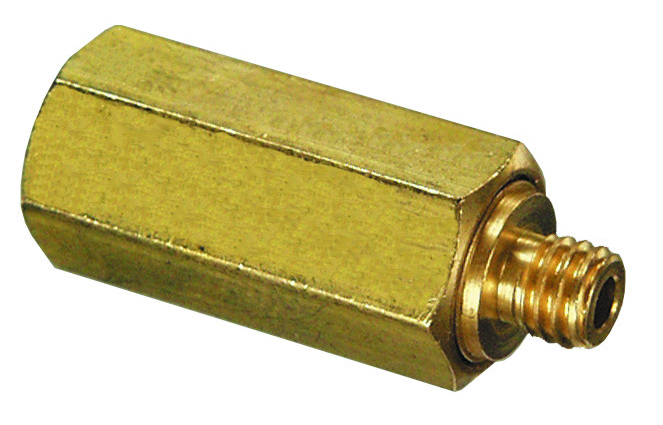

Check valves permit flow in one direction only. The MCV series is available with #10-32 ports and are construced of bright-dipped brass bodies that provide in-line mounting.
Estimated to ship within 10 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Bright brass bodies
  • Direct or In-Line mount
  • Not intended for pressure relief
  • Nitrile seals and stainless steel spring are standard

    • Flow180 l/min @ 50 psig; 325 l/min @ 100 psig
    Input Pressure300 psig (21 bar) max.
    Length1.25
    Material, BodyBrass
    Material, SealsNitrile
    Material, SpringStainless Steel
    MediumAir
    MountDirect or In-Line
    NoteNot intended for pressure relief. Arrow on valve indicates direction of flow.
    Operating Temperature Range32 to 230°F (0 to 110°C)

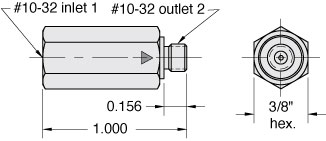

    Ports (Inlet - Outlet)#10-32 (Female - Male)
    Pressure to OpenCracks @ approx. 1/2 psig (0.03 bar)
    Product Line BrochureMechanical Valves
    UnitImperial
    Weight (lbs.)0.0300
