M-TV-4DM

More Views

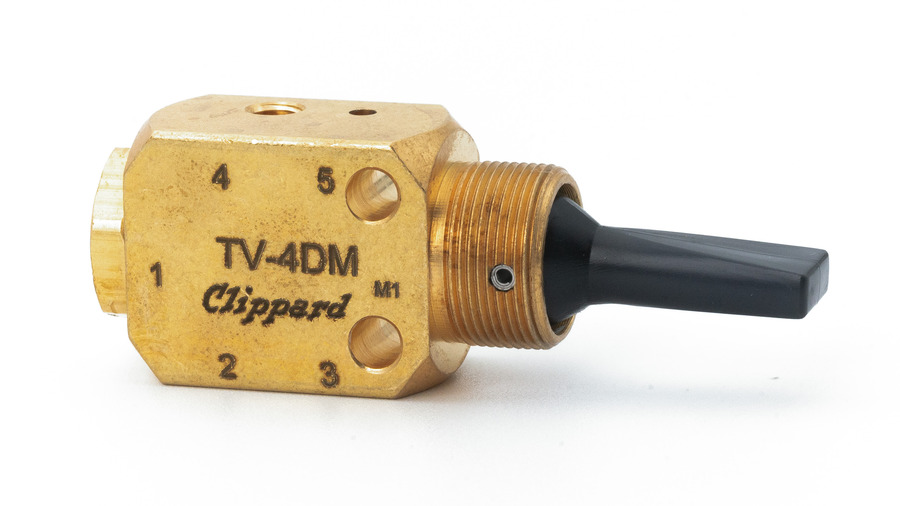

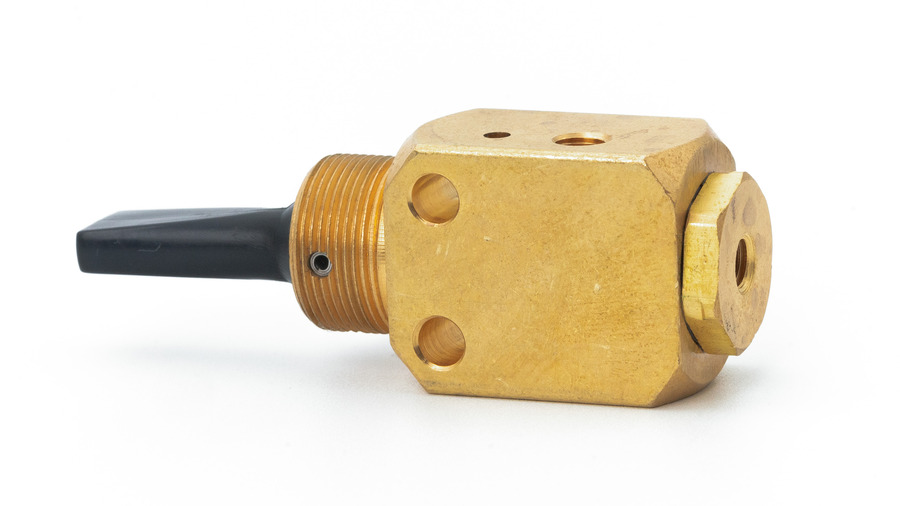

M-TV-4DM

4-Way 3-position toggle valves with outlet ports open to atmoshere in the center position. The valve can be spring center, 3-position detent or the "DM" provides a detent on one side and spring return on the other side. The TV-DM model can be used on the momentary side as a "jog" or manual control, and with the detented side for an automatic or "run" mode.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Detented & Momentary models available
  • #10-32 & 1/8" NPT styles

    • ActuationDetented/Momentary
    Force to Rotate Toggle8 oz. nominal
    Included Item(s)Nut & Lockwashers
    Input PSI10 bar max.
    Material, TogglePlastic
    Max. Flow125 l/min @ 3 bar; 210 l/min @ 7 bar
    MediumAir
    MountM16 x 1.5 thread
    PortM5
    Product Line BrochureMechanical Valves
    SealsNitrile Std., FKM & Krytox Optional
    UnitMetric
    Weight (lbs.)0.1800
