M-TV-4DH

More Views

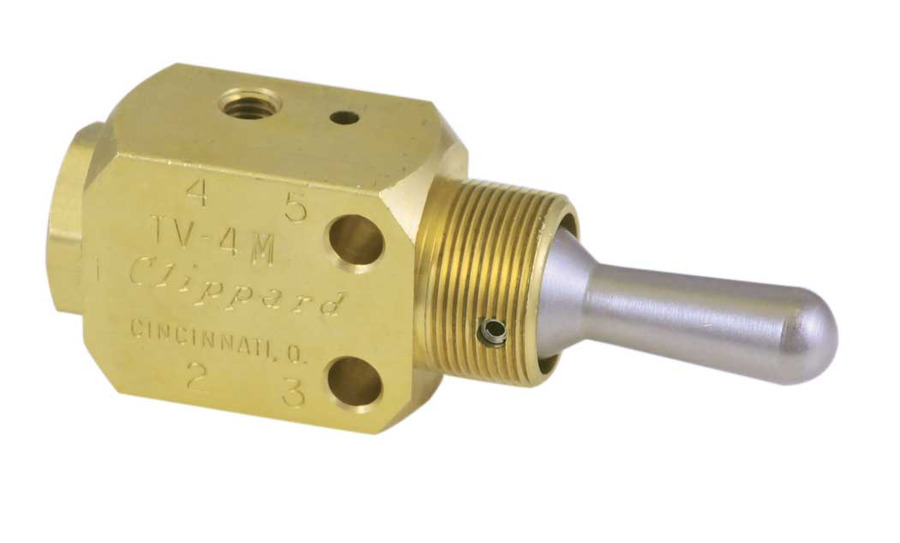

M-TV-4DH

4-Way 3-position toggle valves with outlet ports open to atmoshere in the center position. The valve can be spring center, 3-position detent or the "DM" provides a detent on one side and spring return on the other side. The TV-DM model can be used on the momentary side as a "jog" or manual control, and with the detented side for an automatic or "run" mode.
Estimated to ship within 20 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Detented & Momentary models available
  • #10-32 & 1/8" NPT styles

    • ActuationDetented/Detented
    Force to Rotate Toggle8 oz. nominal
    Included Item(s)Nut & Lockwashers
    Input PSI10 bar max.
    Material, ToggleNickel-Plated Brass
    Max. Flow125 l/min @ 3 bar; 210 l/min @ 7 bar
    MediumAir
    MountM16 x 1.5 thread
    PortM5
    Product Line BrochureMechanical Valves
    SealsNitrile Std., FKM & Krytox Optional
    UnitMetric
    Weight (lbs.)0.1800
