M-TV-2SF

More Views

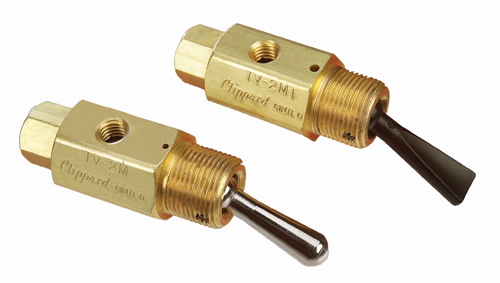

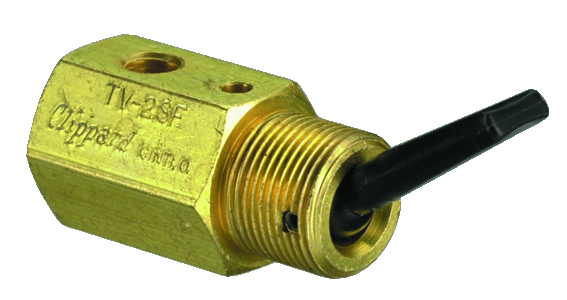

M-TV-2SF

The function of a 2-Way valve is to turn an air supply on and off. In the "on" position, medium flows from the inlet to the outlet, and in the "off" position, the flow is blocked. 3-Way styles have an exhaust port which vents the outlet to the atmosphere. Available with #10-32 and 1/8" NPT ports.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Miniature #10-32 or 1/8" NPT Threaded Ports
  • 2-Way, 3-Way, 4-Way 2-Position Spool & Poppet Valves
  • Normally-Open or Normally-Closed
  • Brass Body, Nitrile Seals, Stainless Steel Stem & Spring
  • Steel or Plastic Toggles
  • Medium: Air, Water or Oil

    • ActuationDetented
    Air Flow125 L/min @ 3.5 bar; 225 l/min @ 7 bar
    Force to Rotate Toggle8 oz. nominal
    Function2-Way Normally-Closed
    Included ItemsNuts & Lockwashers
    Input PSI10 bar max.
    Material, BodyBrass
    Material, SealsNitrile Std., FKM & Krytox Optional
    Material, SpringStainless Steel Stem & Spring
    Material, TogglePlastic
    MediumAir, Water or Oil

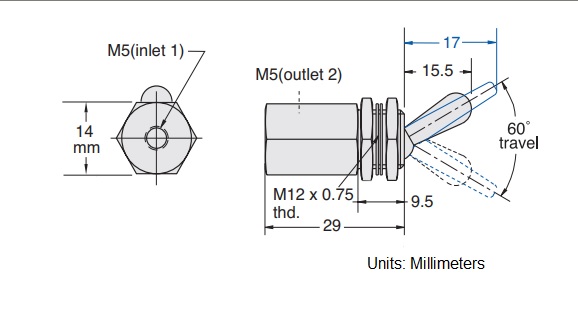

    MountM12 x 0.75 thread.
    Operating Pressure150 psig (10 bar) max.
    Operating Temperature Range0 to 110°C
    Ports#10-32
    Product Line BrochureMechanical Valves
    SealsNitrile
    StyleToggle
    UnitMetric
    Weight (lbs.)0.1000
